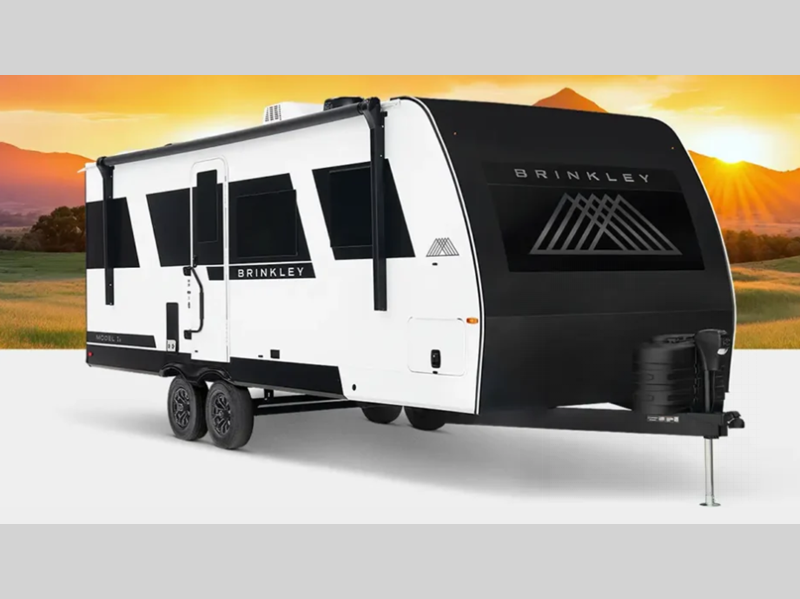

Brinkley introduces the new Model Ix premium half-ton towable travel trailer to their lineup! You'll enjoy a residential interior thanks to Brinkley's CraftSense building techniques, plus a Road Armor suspension for an overall better towing experience!

There is a seamless laminated aluminum exterior and a straight frame chassis for added durability. You will also love the square Euro frameless windows with blackout shades with reflective insulation, and the industry first low-maintenance roof. Inside there is premium residential cabinets with dovetail drawers, a one-piece fiberglass shower with neon LED marine lighting, and dimmable living room lights to name a few comforts.

Start a new adventure in a Model Ix travel trailer by Brinkley!

Floorplans (5)
Features
Manu-Facts

Model Ix 20x

Take a Virtual Tour

Brinkley Model Ix travel trailer 20x highlights: Front Hidden Bed System ... more about Model Ix 20x

Featured 20x

Specifications

Sleeps	2
Slides	1
Length	23 ft 11 in
Ext Width	8 ft
Ext Height	10 ft 11 in
Int Height	6 ft 6 in
Hitch Weight	525 lbs
GVWR	7395 lbs
Dry Weight	5653 lbs
Fresh Water Capacity	46 gals
Grey Water Capacity	45 gals
Black Water Capacity	37 gals
Tire Size	205/75R14
Furnace BTU	30000 btu
Available Beds	Murphy Bed
Refrigerator Type	12V
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	36" x 30"
Number of Awnings	1
Axle Weight	3500 lbs
LP Tank Capacity	20 lbs
Water Heater Type	Tankless On Demand
AC BTU	18000 btu
TV Info	LR 40" Smart TV
Awning Info	16' Electric w/LED Lighting
Axle Count	2
Number of LP Tanks	2
Shower Type	Standard
Electrical Service	30 amp
Solar Wattage	200 watts

Similar Floorplans

Murphy Bed Front Bedroom

Model Ix 23x

Take a Virtual Tour

Brinkley Model Ix travel trailer 23x highlights: Front Semi-Private Bedroom ... more about Model Ix 23x

Featured 23x

Specifications

Sleeps	2
Slides	1
Length	26 ft 11 in
Ext Width	8 ft
Ext Height	10 ft 11 in
Int Height	6 ft 6 in
Hitch Weight	556 lbs
GVWR	7495 lbs
Dry Weight	5841 lbs
Fresh Water Capacity	46 gals
Grey Water Capacity	45 gals
Black Water Capacity	45 gals
Tire Size	205/75R14
Furnace BTU	30000 btu
Available Beds	Queen
Refrigerator Type	12V
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	36" x 30"
Number of Awnings	1
Axle Weight	3500 lbs
LP Tank Capacity	20 lbs
Water Heater Type	Tankless On Demand
AC BTU	18000 btu
TV Info	LR 40" Smart TV
Awning Info	17' Electric w/LED Lighting
Axle Count	2
Number of LP Tanks	2
Shower Type	Standard
Electrical Service	30 amp
Solar Wattage	200 watts

Similar Floorplans

Front Bedroom

Model Ix 23

Take a Virtual Tour

Brinkley Model Ix travel trailer 23 highlights: Front Semi-Private Bedroom ... more about Model Ix 23

Have a question about this floorplan? Contact Us

Specifications

Sleeps	2
Slides	1
Length	26 ft 11 in
Ext Width	8 ft
Ext Height	10 ft 5 in
Int Height	6 ft 6 in
Hitch Weight	526 lbs
GVWR	7495 lbs
Dry Weight	5771 lbs
Fresh Water Capacity	46 gals
Grey Water Capacity	45 gals
Black Water Capacity	45 gals
Tire Size	205/75R14
Furnace BTU	30000 btu
Available Beds	Queen
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	36" x 30"
Number of Awnings	1
Axle Weight	3500 lbs
LP Tank Capacity	20 lbs
Water Heater Type	Tankless On Demand
AC BTU	18000 btu
TV Info	LR 40" Smart TV
Awning Info	17'
Axle Count	2
Number of LP Tanks	2
Shower Type	Standard
Electrical Service	30 amp

Similar Floorplans

Front Bedroom

Model Ix 24x

Take a Virtual Tour

Brinkley Model Ix travel trailer 24x highlights: Front Private Bedroom Bunk Beds ... more about Model Ix 24x

Have a question about this floorplan? Contact Us

Specifications

Sleeps	6
Slides	1
Length	29 ft 11 in
Ext Width	8 ft
Ext Height	11 ft 1 in
Int Height	6 ft 6 in
Hitch Weight	654 lbs
GVWR	8495 lbs
Dry Weight	6891 lbs
Fresh Water Capacity	46 gals
Grey Water Capacity	80 gals
Black Water Capacity	35 gals
Tire Size	225/75R15
Furnace BTU	30000 btu
Number Of Bunks	2
Available Beds	Queen
Refrigerator Type	12V
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	36" x 30"
Number of Awnings	1
Axle Weight	4400 lbs
LP Tank Capacity	20 lbs
Water Heater Type	Tankless On Demand
AC BTU	18000 btu
TV Info	LR 40" Smart TV
Awning Info	17' Electric w/LED Lighting
Axle Count	2
Number of LP Tanks	2
Shower Type	Standard
Electrical Service	50 amp
Solar Wattage	200 watts

Similar Floorplans

Bunkhouse Two Entry/Exit Doors Front Bedroom

Model Ix 25x

Brinkley Model Ix travel trailer 25x highlights: Walk-Thru Bath Dual Entry Doors ... more about Model Ix 25x

Have a question about this floorplan? Contact Us

Specifications

Sleeps	4
Slides	1
Length	29 ft 11 in
Ext Width	8 ft
Ext Height	11 ft 1 in
Int Height	6 ft 6 in
Hitch Weight	691 lbs
GVWR	8495 lbs
Dry Weight	6888 lbs
Fresh Water Capacity	46 gals
Grey Water Capacity	70 gals
Black Water Capacity	35 gals
Tire Size	225/75R15
Furnace BTU	30000 btu
Available Beds	Queen
Refrigerator Type	12V
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	36" x 30"
Number of Awnings	1
Axle Weight	4400 lbs
LP Tank Capacity	20 lbs
Water Heater Type	Tankless On Demand
AC BTU	18000 btu
TV Info	LR 40" Smart TV
Awning Info	17' Electric w/LED Lighting
Axle Count	2
Number of LP Tanks	2
Shower Type	Standard
Electrical Service	50 amp
Solar Wattage	200 watts

Similar Floorplans

Rear Living Area Walk-Thru Bath Two Entry/Exit Doors

Model Ix Features:

Standard Features (2026)

Chassis & Suspension

Brinkley Spec & Certified Straight Frame Chassis
Road Defense Triple Powder Coated Chassis
Premium Hankook Vantra 205/75 Load Range D 8-Ply Tires (N/A 24x, 25x)
Premium Hankook Vantra 225/75 Load Range E 10-Ply Tires (24x, 25x)
14" Custom Aluminum Luxury Wheels (N/A 24x, 24x)
15" Custom Aluminum Luxury Wheels (24x, 25x)
Galvanized Wheel Well Shields for Road Debris
Drum Brakes
Power Tongue Jack w/ LED Illumination
4-Point Manual Stabilizer Jack System (Electric Jack Prep)
High-Performance Road Armor™ Suspension Equalizer System
Heavy Duty 3,500 lbs. Axles (N/A 24x, 25x)
Heavy Duty 4,400 lbs. Axles (24x, 25x)
Reinforced Axle Hangers
Demco EZ Latch Trailer Coupler SO Info Icon
Upgraded 6' Coiled Breakaway Safety Cable
2" Rear Cargo Receiver Hitch (300 lbs. Capacity)
Exterior Pet & Property Security Tie-Down

Exterior & Storage

Seamless Laminated Aluminum Exterior
- Euramax StrongLite Laminated Aluminum
- Automotive-Grade Paint
- UV Protected for a Lasting Finish
Square Euro Frameless Windows w/ Up To 6" Openings (Industry 1st)
Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
TuffCoat Protective Epoxy (Front Cap)
Extended Front Rock Guard Protective Shield
Front Dotless COB Neon LED Docking Lights
Electric Awning w/ LED Lighting
Slide-Out Topper Ready
Backup/Security Furrion Camera Prep
Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster (Gateway Ready)
Front Pass-Through Storage Compartment:
- Full-Width LED Strip Lighting
- 2x Power Outlets
- Forced-Air Heated & Insulated
- Tough-Ply Floor (Gray)
- Thick Bulkhead Walls (Designed for Mounting & Securing Items)
Rear Storage Compartment w/Motion Lighting & 110V Power Outlets (Heated & Insulated) (24x Only)
Slam Latch Baggage Doors
Exterior Ladder w/ Secure Transition
Exterior Camp-Side Outlets
Deluxe Entrance Package:
- 28"x72" Entry Door w/ Window & Shad
- Lightweight Solid Entry Steps
- Child/Pet Defender Screen Protector
- Large Folding Entry Grab Handle
26" x 72" Campside Second Enry Door (24x, 25x Only)

Solar, Electric & HVAC

200-Watt Solar Panel (400 Watt Ready)
30 Amp Victron MPPT Solar Controller (400W Solar & Lithium Ready)
Inverter Prep
18k BTU Furrion Chill Cube Air Variable Speed Conditioner (Main)
8k BTU Furrion Air Conditioner (Bedroom; replaces fan) (Optional; 24x, 25x Only)
2nd Air Conditioner Prep (Bedroom) (24x, 25x Only)
Brinkley Smart-Command™ Center w/ App Control
Thermaflex® No Kink No Tear Heat Ducts
Travel, Storage, & Solar Mode Battery Disconnects
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
30k BTU High-Capacity Furnace
30-Amp Electric Service (N/A 24x, 25x)
50-Amp Electric Service (24x, 25x Only)
Detachable 30-Amp Power Cord w/ Angled Connector (N/A 24x, 25x)
Detachable 50-Amp Power Cord w/Angled Connector (24x, 25x Only)

Plumbing & LP

Brass Plumbing Fittings (Industry First)
Water Shutoff Valve on ALL Fixtures
Extended Waste Hose Carrier Storage Tube
Clear "No Surprises" Sewer Cap w/ Lanyard
Brinkley On-Command™ Docking & Utility Center
EZ Winterization Valve in Utility Center
Hot/Cold Exterior Spray Port (Off-Campside)
Tankless On-Demand Water Heater
Dual 20-Gallon LP/Propane Tanks w/ Cover
LP-IQ Propane Gauge
Exterior LP Quick Connect

Interior & Living Spaces

Brinkley CraftSense™ Wood Trim Construction
69" Slide Out Height
Slide-In Access: Refrigerator, Bathroom, Bedroom
Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens
Dimmable Living Room Lights
40" Smart TV w/ Articulating Mount
Entertainment Wall Storage Cabinets
SoundCore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket
62" Wall Hugger Theater Seating w/ 2 Recliners
62" Tri-Fold Sofa w/Scotchgard Protection (52" x 70" Sleeper) (replaces theater seating) (Optional; N/A 25x)
60" Roll Over Sofa w/ End Tables/Nightstands (20x Only)
Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
Floor-to-Ceiling Entry Closet w/ Hanging Storage & Drawers (23x Only)
Wall Coat Hooks
Pet-Friendly Package:
- 100% Carpet Free
- Limited Floors Ducts
- Child/Pet Defender Screen Protector

Kitchen & Dining

Premium Residential Drawers w/ Dovetail Joints
Residential Thermofoil Kitchen Countertop
Pull-Out Dining Table w/ Utensil + 2x Drawers (2 Positions, Seats up to 4)
2x Folding Chairs w/ Storage Bag
Pull-Out Trash Bin w/ Utility Storage
Stow 'n Go Paper Towel Caddy
Magnetic Cabinet & Drawer Catches
Dishwasher Prep
Large Pantry w/ Pull-Out Drawers & Appliance Outlet
10 cu. ft. Energy Efficient 12-Volt Refrigerator
3-Burner Stovetop
Residential 30" Convection Microwave
Large Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover
Maxxair Fan w/ Rain Sensor

Bathroom

Marine Grade Dotless COB Neon LED Shower Lighting
Space Saving Bathroom Pocket Door(s) (N/A 24x)
Stainless Steel Sink w/ Tuff Coat
Glass Sliding Shower Door
One-piece 36"x30" Molded Fiberglass Shower
Residential Shower System w/ Head & Handheld Sprayers
Overhead Shower Cove
Floor-to-Ceiling Linen Cubbies (24x, 25x)
Porcelain Toilet
Medicine Cabinet (24x Only)
Maxxair Fan w/ Rain Sensor

Bedroom

Queen Bed w/ Residential 7" Memory Foam Bamboo Mattress (60"x80") (N/A 20x)
Brinkley Feather-Lift™ Hidden Bed System (20x only)
Queen Bed w/ Residential 7" Feather Topper Mattress (60"x78") (20x only)
Dual Bedside Nightstands w/ Cubbies & Outlets w/ USB & USB-C Charging Ports (CPAP Ready)
2x Storage Drawers (Under Sofa) (20x)
4x Storage Drawers (Under Bed) (N/A 20x)
Matching Comforter & 2 Pillow Package
Dual Reading Sconce Lights w/ USB Charging
Dual Floor-to-Ceiling Wardrobes w/ Clothing Rod & Drawers
TV Prep (Coax, & 110V Outlets, Wall Mount Backer) (24x, 25x Only)
Fan (Bedroom) w/AC Prep (24x, 25x)
Overhead Storage Cabinets
Room Divier (23x)

Bedroom (24x Only)

2x Bunk Spaces w/Double Mattresses
Privacy Curtains
Hardwood Bunk Frame & Ladder
4x Storage Drawers (Under-Bunks)
Top & Bottom Bunk Windows
110V Power Outlets & USB & USB-C Charging Ports (Top & Bottom Bunks)

Construction

Brinkley Automotive Exterior Seals Package!
Low-Maintenance Roof (Industry First)
Developed by Campers with Customer Feedback
Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
Automotive-Style Riveted Wheel Skirts & Panels
Euramax StrongLite Laminated Aluminum Exterior Walls w/ Azdel Composite w/ 3-Year Warranty Covering Color & Gloss Retention
Reinforced & Walkable Slide Roofs
Thermaflex® No Kink No Tear Heat Ducts
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
Water Shutoff Valve on ALL Fixtures
Brass Plumbing Fittings (Segment First)
Industry Best Insulation Package:
- R40 Roof, R9 Walls, R40 Floor Insulation
- Double Insulated Roof, Front Cap, & Main Floor
- Heated & Enclosed Underbelly (Circulated Forced Air)
- Insulated Slide-Out Floors
Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
- Industry Leading 350+ Point Inspection & Testing Process
- Off-Road Simulation Tested (Industries Exclusive)
- Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Who is Brinkley?

Our ownership team is comprised of five equal partners representing decades of RV experience. We have a strong track record of creating and influencing some of the industry’s most successful RV companies, including many of today’s top-selling fifth wheel and travel trailer brands.

Why did we start Brinkley?

We noticed a distinct shift in the RV industry in recent years and felt a sense of responsibility to our customers to re-ignite cutting-edge innovation and bring back customer-driven product designs that will raise the bar for everyone. More importantly, we saw a gradual decline in quality and a skewed perception of what it means to take care of the customer. We are excited to prove to our customers that there is a better way. We are passionate and committed to building high-quality RVs and servicing them like never before! We encourage you to research us and Brinkley RV. The more you know about us, the more you’ll see that we’re building something different. We are relentless in our pursuit of the ULTIMATE CUSTOMER EXPERIENCE! We will never stop in our quest to be the best and most reputable RV manufacturer in the industry.
