Wherever you plan to roam, expect comfort with a Compass AWD Class B+ motorhome by Thor Motor Coach. This coach sits on a Ford transit chassis with an all-wheel drive system and added safety features, plus a 3.5L V6 EcoBoost turbo gas engine for power you can count on.



Each Compass AWD features an 80-inch interior height for added comfort, plus vinyl flooring for a more residential look and color options that fit your style. The Winegard ConnecT 2.0 will be perfect when you need to get some work done during the week, and there is a TV in the living room so you'll never go bored. You are sure to turn heads as you travel down the road with the exterior partial paint on HD-MAX, plus there is a power awning with LED lights you can relax under once you get settled at the campground.



Bring all the comforts of home with you in a Compass AWD Class B+ motorhome by Thor Motor Coach!

  • Specifications

    Sleeps 3
    Slides 1
    Length 23 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color London Fog, Seapearl, Charcoal Matrix, Travertine 3

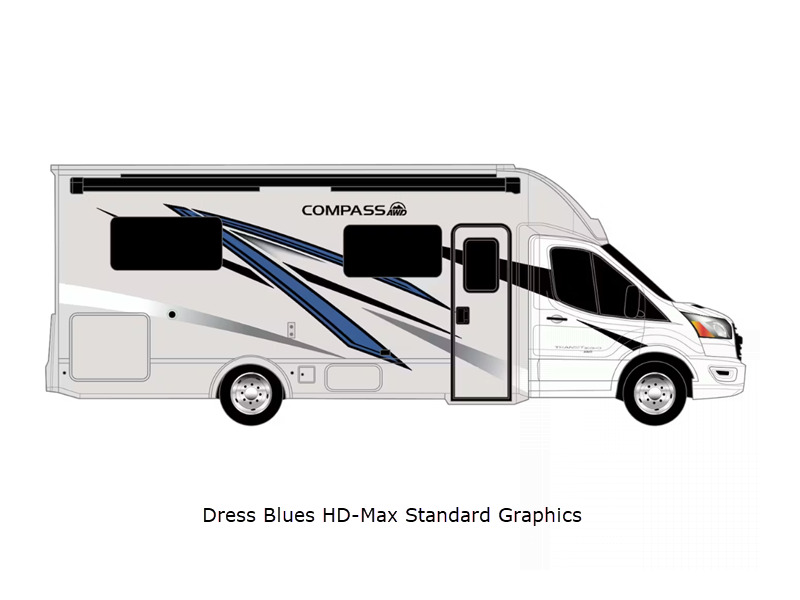

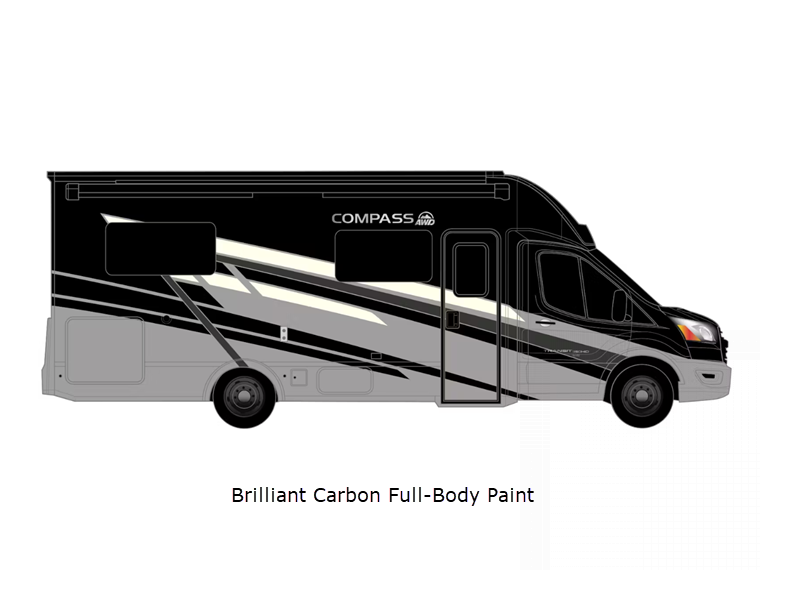

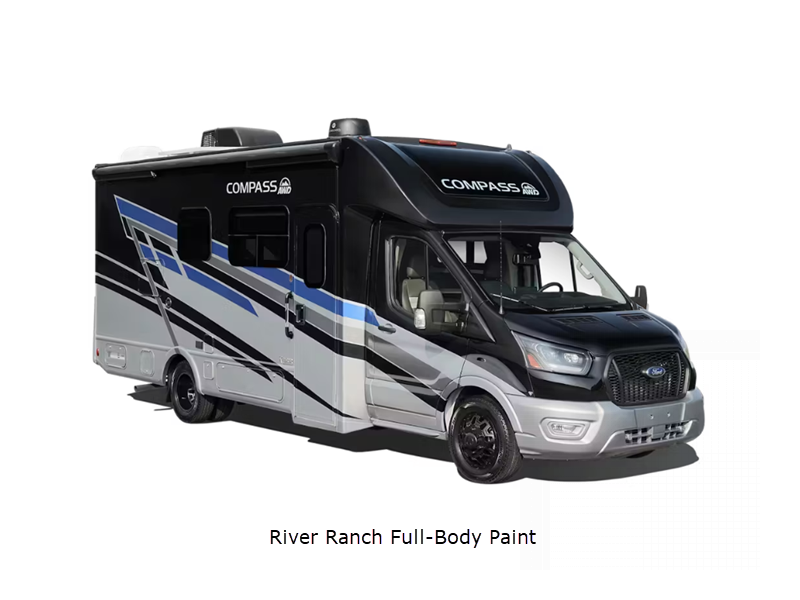

    Exterior Color HD-Max Standard; Dress Blues, Black Ice. Full-Body Paint Options; Brilliant Carbon, River Ranch, Seashell Grey
    Hitch Weight 5000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 19 gals
    Furnace BTU 19000 btu
    Generator 4.0 kW Gas
    Fuel Type Gasoline
    Engine 3.5L V6 EcoBoost Turbo
    Chassis Ford Transit
    Horsepower 310 hp
    Fuel Capacity 25 gals
    Wheelbase 156 in
    Available Beds Flip-Up RV Queen
    Torque 400 ft-lb
    Refrigerator Type 12V Dual Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 40 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Basement Storage 15.1 cu. ft.
    TV Info LR 32" Smart TV, BR 32" Smart TV
    Awning Info 14' Power w/Integrated LED Lighting
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp
  • Compass AWD 24JG

    Compass AWD 24JG Floorplan Image

    Thor Motor Coach Compass AWD Class B+ gas motorhome 24JG highlights: Built-In ... more about Compass AWD 24JG

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 10 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color London Fog, Seapearl, Charcoal Matrix, Travertine 3
    Exterior Color HD-Max Standard; Dress Blues, Black Ice. Full-Body Paint Options; Brilliant Carbon, River Ranch, Seashell Grey
    Hitch Weight 5000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 19 gals
    Furnace BTU 19000 btu
    Generator 4.0 kW Gas
    Fuel Type Gasoline
    Engine 3.5L V6 EcoBoost Turbo
    Chassis Ford Transit
    Horsepower 310 hp
    Fuel Capacity 25 gals
    Wheelbase 178 in
    Available Beds Flip-Up RV Queen
    Torque 400 ft-lb
    Refrigerator Type 12V Dual Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 40 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Basement Storage 18 cu. ft.
    TV Info LR 32" Smart TV, BR Retractable 32" Smart TV
    Awning Info 16' Power w/Integrated LED Lighting
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Compass AWD 24KB

    Compass AWD 24KB Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Compass AWD Class B+ motorhome 24KB highlights: Two Twin Beds ... more about Compass AWD 24KB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Slides 1
    Length 25 ft 10 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color London Fog, Seapearl, Charcoal Matrix, Travertine 3
    Exterior Color HD-Max Standard; Dress Blues, Black Ice. Full-Body Paint Options; Brilliant Carbon, River Ranch, Seashell Grey
    Hitch Weight 5000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 27 gals
    Black Water Capacity 20 gals
    Furnace BTU 19000 btu
    Generator 4.0 kW Gas
    Fuel Type Gasoline
    Engine 3.5L V6 EcoBoost Turbo
    Chassis Ford Transit
    Horsepower 310 hp
    Fuel Capacity 25 gals
    Wheelbase 178 in
    Available Beds Twins Convert to King
    Torque 400 ft-lb
    Refrigerator Type 12V Dual Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 27" x 27"
    Number of Awnings 1
    LP Tank Capacity 40 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Basement Storage 45.4 cu. ft.
    TV Info LR 32" Smart TV, BR 32" Smart TV
    Awning Info 16' 6" Power w/Integrated LED Lighting
    Gross Combined Weight 15000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

Compass AWD Features:

Standard Features (2025)



Construction and Exterior

  • Ford® Transit Chassis 3.5L V6 Eco Boost® Turbo Gas Engine, 310-HP, 400-lb.ft. Torque
  • All-Wheel Drive (AWD) System
  • Ford® 10-speed Automatic Overdrive Transmission (10R80)
  • Ford® Safety Systems - Lane Departure Warning, Pre-Collision Assist, Auto High Beam Headlights, TPMS, AdvanceTrac® with RSC®, Hill Start Assist, Rain Sensing Windshield Wipers
  • FordPass™ Connect
  • 5,000-lb Trailer Hitch with 7-pin Round Connector
  • Electric Stabilizing System (Model Specific)
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof and Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls and Floors with Block Foam Insulation

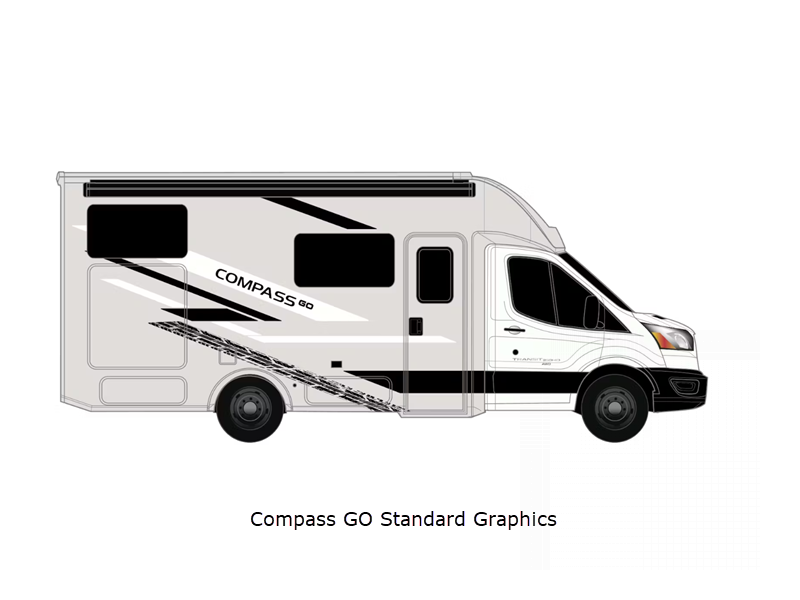

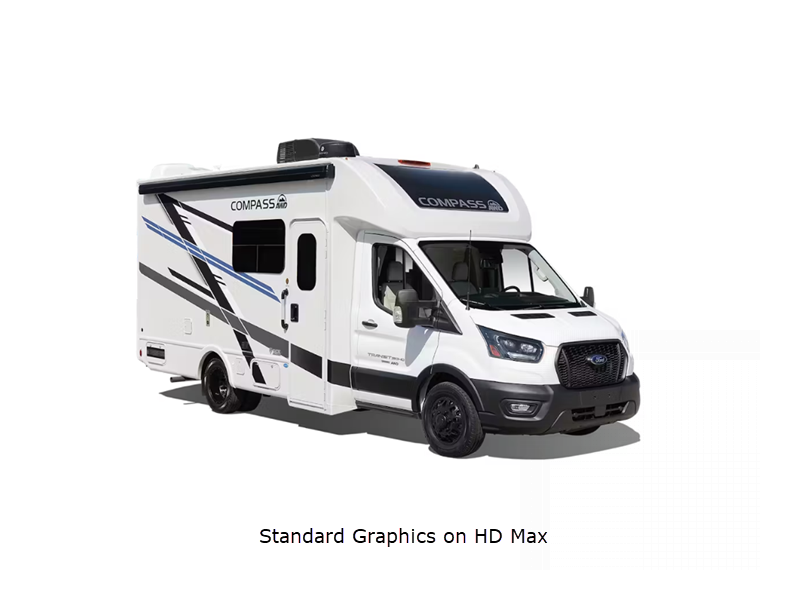

  • Partial-Paint on HD-MAX® Exterior with Graphics Package

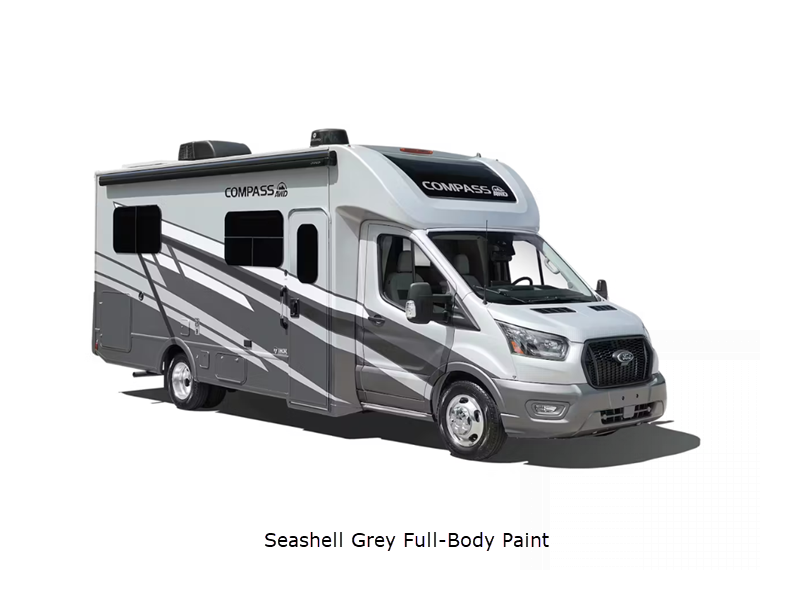

  • Full-Body Paint Package with Protective Mask IPO Partial-Paint on HD-MAX® Exterior Graphics Package (Optional)
  • One-Piece Fiberglass Front Cap with Integrated Wing Walls
  • Fiberglass Front Cap with Skylight and Power Shade
  • Fiberglass Upper and Lower Rear Cap
  • Rotocast Storage Compartments with Lights
  • Flush Mount Radius Compartment Doors
  • Premium One-Piece Crossflex Exterior Roofing
  • Power Patio Awning with Integrated LED Lighting
  • Slide-out Room Topper Awning
  • Exterior Grab Handle
  • Entry Door with Deadbolt Lock
  • Black Frameless Windows
  • Exterior camp-side spray port

Automotive and Cockpit

  • AM/FM Dash Radio with SYNC® 3, Navigation, 8 in. Color Multi-function Display
  • Sirius Tuner and Antenna
  • Deluxe Heated/Remote Exterior Mirrors
  • Power Windows and Door Locks
  • Adaptive Cruise Control
  • Tilt Leather Steering Wheel with Audio Buttons to Control Dash Radio and Multi-Function Display
  • Map Light
  • Sun Visors
  • Windshield Privacy Curtain
  • Drink Holders
  • Rear View Mirror with Back-up Monitor
  • Three-point Seat Belts for Driver and Passenger
  • Reclining/Swivel Leatherette Captain's Chairs with Filler Cushion
  • Cockpit Carpet Mat
  • Driver and Passenger Air Bags
  • Keyless Entry System
  • Aluminum Wheels
  • Blind Spot Monitoring System (Optional)

Interior

  • 80 in. Interior Ceiling Height
  • Residential Vinyl Flooring
  • Rubber Tread Entry Steps with Lighted Step Well
  • Metal Entry Grab Handle
  • Smoke, LPG and Carbon Monoxide Detectors
  • Fire Extinguisher
  • Hard Vinyl Ceiling
  • Ceiling Ducted Air Conditioning System
  • Coastline Grey Cabinets with Black Hardware and Faucets
  • High-Gloss Euro-Style Cabinetry with Complementary Cabinet Door Hardware and Hidden Hinges (Optional)
  • Pressed Laminate Countertops
  • Jack Knife sleeper sofa (Model Specific)
  • Leatherette Dream Dinette® Booth (Model Specific)
  • Wireless Phone Charger w/USB Plug on Dinette Table Top (Model Specific)
  • Pop-up countertop outlet with electronics charging station
  • Passenger Seat Belts in Select Areas
  • Premium Window Privacy Roller Shades
  • Full Extension Soft Close Metal Ball-Bearing Drawer Guides

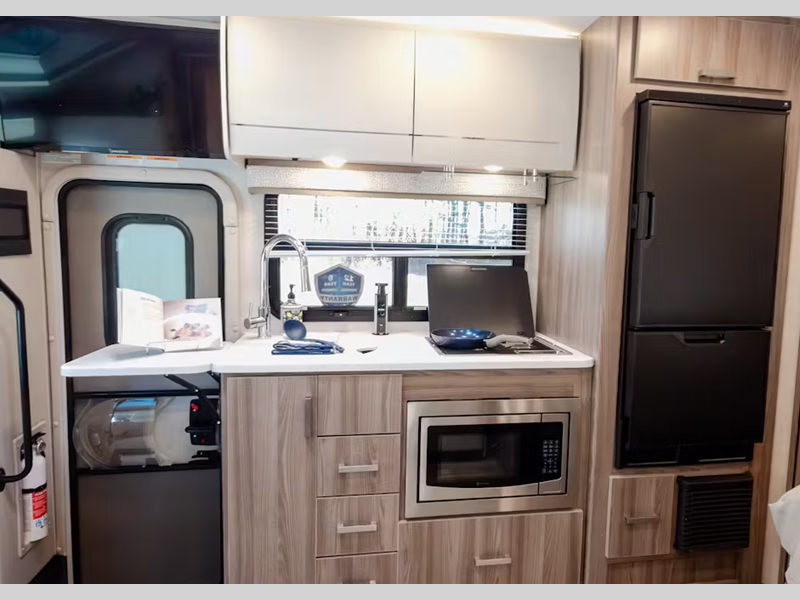

Kitchen

  • 12V Dual Door Refrigerator
  • Two Burner Gas Cooktop, Glass Cover with Electric Start
  • Protective Cover and Task Lighting above Cooktop
  • Convection Microwave Oven with Air Fryer
  • Large Undermount Stainless Steel Single Bowl Sink with Cover and Single Handle Kitchen Faucet with Pull-Down Sprayer
  • Kitchen Waste Basket
  • Ceiling Vent Kitchen 12V Powered with Switch
  • Counter Top Extension

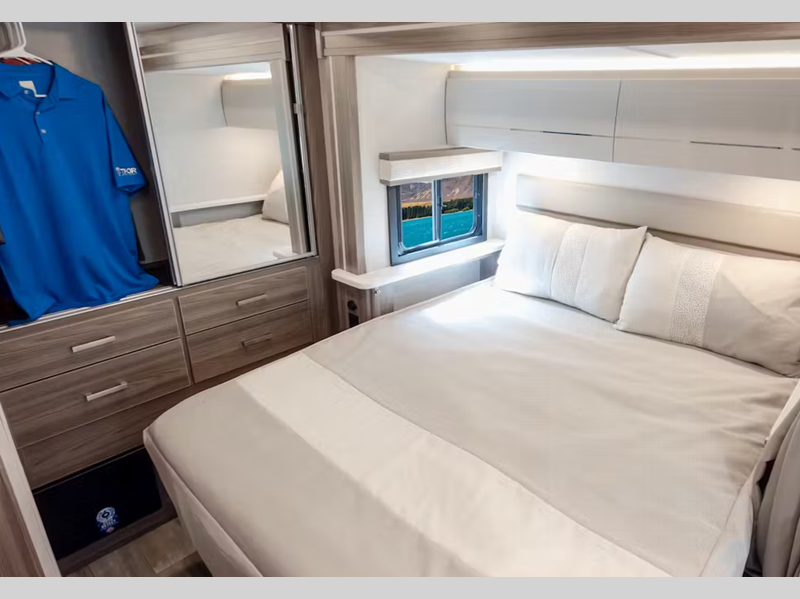

Bedroom and Bathroom

  • Comfort Flex Euro Style Bed Support - Flip-Up Queen Size Bed with Reversible Mattress and Cushioned Seating Underneath (Model Specific)
  • Two (2) Twin Sofa Beds with Upholstered Covers & King Conversion (Model Specific)
  • Headboard
  • Bedspread and Pillow Shams (Model Specific)
  • Bedroom USB Power Charging Center for Electronics
  • Bedroom 12V Outlet CPAP Machine

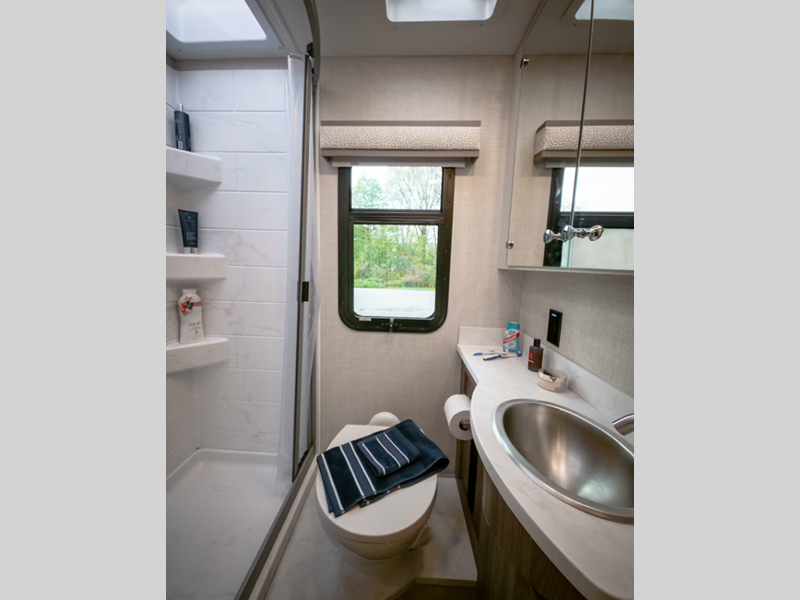

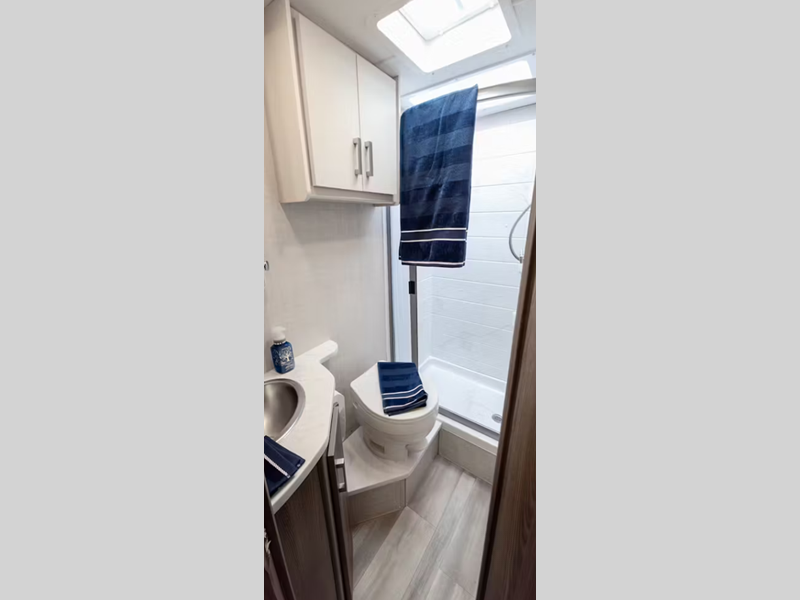

  • Stainless Steel Bathroom Sink
  • Foot Flush Toilet
  • Power Bath Vent with Wall Switch
  • Robe Hooks inside Bath
  • Skylight in Shower
  • Shower with Deluxe Curtain and Curved Rod (Model Specific)
  • Shower with Curved Anti-Microbial Shower Curtain (Model Specific)
  • 12-Vot Fan with Cover in Bedroom (Model Specific)

Entertainment

  • 32" Smart TV in Living Area
  • 32" Smart TV in Bedroom
  • Digital TV Antenna
  • Cable TV Ready
  • Satellite Mounting Backer in Roof
  • Living Area Power Charging Center for Electronics with Net

Electrical and Plumbing

  • 4.0 Kw gas Generator
  • Rapid Camp+™ Multiplex Lighting and Systems Control
  • Winegard® ConnecT 2.0 WiFi/4G/TV Antenna
  • 30-amp Detachable Shoreline Power Cord
  • Automatic Transfer Switch w/Power Protection
  • Automatic Shoreline-to-Generator Transfer Switch
  • 15,000 BTU Air Conditioner
  • Battery Disconnect Switch
  • 12V Lithium house battery
  • 100-watt Solar Panel with Controller
  • Tankless Water Heater
  • Outside Shower
  • 360 Siphon RV Holding Tank Vent Cap
  • 1” Fresh Water Tank Drain
  • Exterior LP Connection
  • Holding Tanks with Heat Pads
  • Black Tank Flush System

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
