Tiffin Motorhomes Wayfarer Motor Home Class C - Diesel RVs For Sale
The Tiffin Wayfarer Class C motorhomes provide an efficient 2.0L V4 diesel engine with turbocharged power, 208 HP and 332 lb.-ft. of torque and diesel fuel economy! There is maximum space and optimal organization so you can relax in an elegant atmosphere for life on the road!
Each coach is built on a Mercedes-Benz 3500 XD dual wheel cutaway chassis with load adaptive electronic stability along with attention, traffic, active brake and lane keeping assist for safety. The chassis also has the SumoSprings ride assist system and the Lippert hydraulic leveling system for smooth driving and set up. Inside, you will love the handcrafted overhead cabinetry, dimmable LED lighting, solar and privacy shades, and many more comforts!
Spontaneous adventures and well-planned trips are waiting in a Wayfarer Class C diesel motorhome by Tiffin Motorhomes; choose yours today!
-
Wayfarer 25 JW
Tiffin Wayfarer Class C diesel motorhome 25 JW highlights: Queen-Size Murphy Bed ... more about Wayfarer 25 JW
Specifications
Sleeps 3 Slides 1 Length 25 ft 8 in Ext Width 7 ft 6 in Ext Height 11 ft 4 in Int Height 6 ft 8 in Interior Color Mink, Champagne Exterior Color Generation 4, Generation 6 Paint Schemes Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 30 gals Grey Water Capacity 33 gals Black Water Capacity 28 gals Tire Size LT215/85R16 Furnace BTU 30000 btu Generator 3.2 kw Onan Quiet Diesel Fuel Type Diesel Engine 3.0L 6 Cylinder Turbo Diesel Chassis Mercedes-Benz 3500 Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 170.3 in Number Of Bunks 1 Available Beds Queen Murphy Bed Torque 325 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 6.5 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 12 gals Water Heater Type Truma AquaGo Comfort Plus Instant AC BTU 15000 btu Basement Storage 54 cu. ft. TV Info LR Lift-Up TV Awning Info Girard Wind Sensor with Speakers Washer/Dryer Available Yes Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Wayfarer 25 XLW
Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 XLW highlights: Two Twin ... more about Wayfarer 25 XLW
Specifications
Sleeps 5 Slides 1 Length 25 ft 8 in Ext Width 7 ft 6 in Ext Height 11 ft 4 in Int Height 7 ft 2 in Interior Color Sedona, Grandview Exterior Color Coastal Blue, Silver Sand, Sea Mist Gen 7 Paint Schemes Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 32 gals Grey Water Capacity 30 gals Black Water Capacity 26 gals Tire Size LT215/85R16 Furnace BTU 30000 btu Generator 4-Kilowatt RVMP Flex Power LP Fuel Type Diesel Engine 2.0L V4 Turbo Diesel Chassis Mercedes-Benz Dual Wheel Cutaway 3500XD Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170.3 in Number Of Bunks 1 Available Beds Twin Beds with King Conversion Torque 332 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 5 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 24" x 32" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 12 gals AC BTU 15000 btu Basement Storage 93 cu. ft. TV Info LR TV Awning Info Girard Side-Mounted Power w/LED Lighting and Speakers Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Wayfarer 25 XRW
Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 XRW highlights: Murphy ... more about Wayfarer 25 XRW
Specifications
Sleeps 5 Slides 1 Length 25 ft 8 in Ext Width 7 ft 6 in Ext Height 11 ft 4 in Int Height 7 ft 2 in Interior Color Sedona, Grandview Exterior Color Coastal Blue, Silver Sand, Sea Mist Gen 7 Paint Schemes Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 32 gals Grey Water Capacity 30 gals Black Water Capacity 26 gals Tire Size LT215/85R16 Furnace BTU 30000 btu Generator 4-Kilowatt RVMP Flex Power LP Fuel Type Diesel Engine 2.0L V4 Turbo Diesel Chassis Mercedes-Benz Dual Wheel Cutaway 3500XD Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170.3 in Number Of Bunks 1 Available Beds Queen Murphy Torque 332 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 7 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 12 gals AC BTU 15000 btu Basement Storage 25 cu. ft. Awning Info Girard Side-Mounted Power w/Integrated LED Lighting Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Wayfarer 25 XPW
Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 XPW highlights: King Bed ... more about Wayfarer 25 XPW
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 1 Length 25 ft 8 in Ext Width 7 ft 6 in Ext Height 11 ft 4 in Int Height 7 ft 2 in Interior Color Sedona, Grandview Exterior Color Coastal Blue, Silver Sand, Sea Mist Gen 7 Paint Schemes Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 32 gals Grey Water Capacity 30 gals Black Water Capacity 26 gals Tire Size LT215/85R16 Furnace BTU 30000 btu Generator 4-Kilowatt RVMP Flex Power LP Fuel Type Diesel Engine 2.0L V4 Turbo Diesel Chassis Mercedes-Benz Dual Wheel Cutaway 3500XD Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170.3 in Number Of Bunks 1 Available Beds Queen Murphy Torque 332 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 7 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 12 gals AC BTU 15000 btu Basement Storage 35 cu. ft. Awning Info Girard Side-Mounted Power w/Integrated LED Lighting Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Wayfarer Features:
Standard Features (2026)
Chassis and Drivetrain
- Mercedes-Benz® 3500XD Dual Wheel Cutaway Chassis
- Mercedes-Benz 2.0 Liter V4 Turbo Diesel High Output 208 HP diesel engine with 332 lb. ft. Torque
- Two-Wheel Drive
- 220-Amp Alternator
- Mercedes-Benz® 9G-Tronic Automatic Transmission
- Aluminum Wheels
- Front and Rear LT 215/85 R16 Tires
- (1) 12-Volt Flooded LeadAcid Chassis Batteries
- Lippert Hydraulic Leveling System with Control Panel
- SumoSprings® Ride Assist System
- Front Radiator
- Four Wheel ABS Brakes
- Manual Parking Brake
- Active Brake Assist (Collision Mitigation)
- Active Distance Assist Distronic® (Adaptive Cruise Control)
- Attention Assist
- Traffic Sign Assist
- Load Adaptive Electronic Stability Program (ESP)
- High Beam Assist
- Active Lane Keeping Assist
Construction
- Seamless One-Piece Gel-Coated Fiberglass Molded Roof Cap
- One-Piece Molded Gel-Coat Fiberglass Front and Rear Caps
Electrical
- Spyder Controls Multiplex System
- Firefly Integrations Mira Module
- Interior Entryway Spyder System Main Monitor
- Additional Spyder System Switch Panel
- (1) 15,000-BTU Air Conditioner with Heat Pump
- Wall-mounted Thermostat with Built-in Temperature Sensor
- SmartPlug® Detachable 30-Amp Shore Power Cord
- Prep for 2 Solar Panel
- HD Over-the-air Antenna
- Park Cable and Ground Satellite Hook-up
- Prep for In-motion Satellite
- HDMI Ports
- Mercedes-Benz® Wireless Internet Access
- 12-Volt Breaker Panel
- 12-Volt Disconnect Switch
- Inverted Outlets for CPAP Machine in Bedroom
- Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
- 110-Volt Exterior Receptacle
- Surge Guard® Transfer Switch
- USB (Standard & USB-C) Receptacles Throughout Coach
Heating and Cooktop Power Source
- Liquid Propane (LP) Coach
- Hydronic Heating & Electronic Appliance Equipped Coach (Optional)
Generators and Power Systems
- 4-kilowatt RVMP Flex Power LP Generator
- 2,000-Watt Pure Sine Wave Inverter
House Batteries
- (2) 12-Volt Flooded Lead-Acid House Batteries
- (2) 12-Volt Lithium House Battery (Optional)
Space Heating
- (1) 30,000-BTU Ducted Furnace (DEP)
- Hydronic Heating System (DEP)
Electrical Add On Options
- (1) 200-Watt Solar Panel with (1) 30-Amp Controller
- In-Motion Satellite
- Starlink Pro
- Wi-Fi Booster
Plumbing
- Water Heater Bypass System
- Aqua View Showermiser™
- Water Filter
- Water Pump
- Low-point Water Drain Lines
- Black Holding Tank Flush System
- Gravity Water Fill
- Heated Fresh and Holding Tanks via Tank Pads and Heat Duct
- Tank Level Monitor System
- Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
- Exterior Rinse Hose with Shower Head
- Fresh Water Hookup for City Water and Tank Fill
- Sewer Hose Storage
Water Heater Options
- Truma AquaGo Comfort Plus Instant Water Heater (DEP)
- Hydronic Heating System (DEP)
Exterior
- Full-body Paint with (2) Layers of Clear Coat
- High Performance Protective Film on Front Cap, Front Cab, and Other Select Areas
- (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting and Built-in Speakers
- Lockable Handles on Compartment Doors
- Motion-sensor Lights in Cargo Bay
- Flush-Style Tinted Windows with Tip-out Feature
- Exterior Patio Light
- Fog Lights
- Driver and Passenger Side Front Cap Exterior Entry Light
- Heated, Electrically Adjustable Side-view Mirrors
- Lightweight Entry Door
- Entry Door Grab Handle
- Mud Flaps
Exterior Add On Options
- Exterior TV
Paint Scheme Options
- Generation 7 Exterior Paint Scheme (Optional)
Paint Color Options

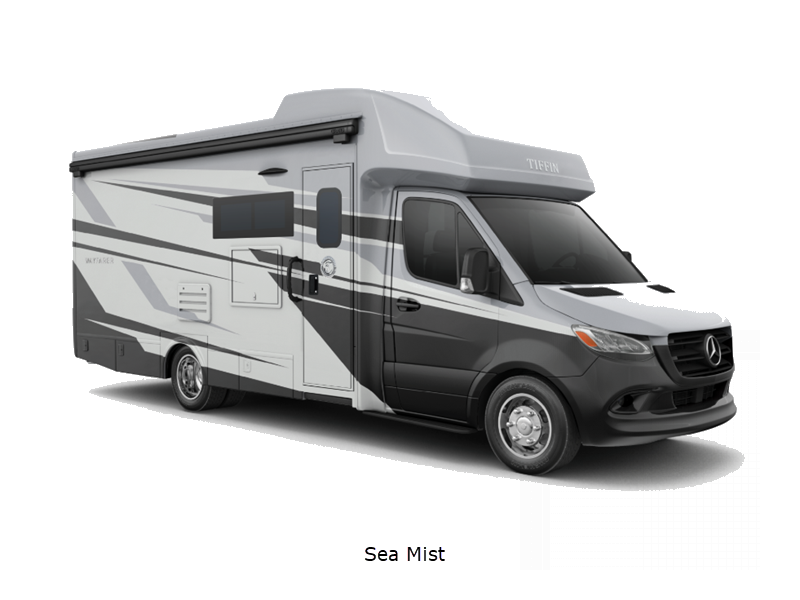

- Sea Mist Full Body Paint

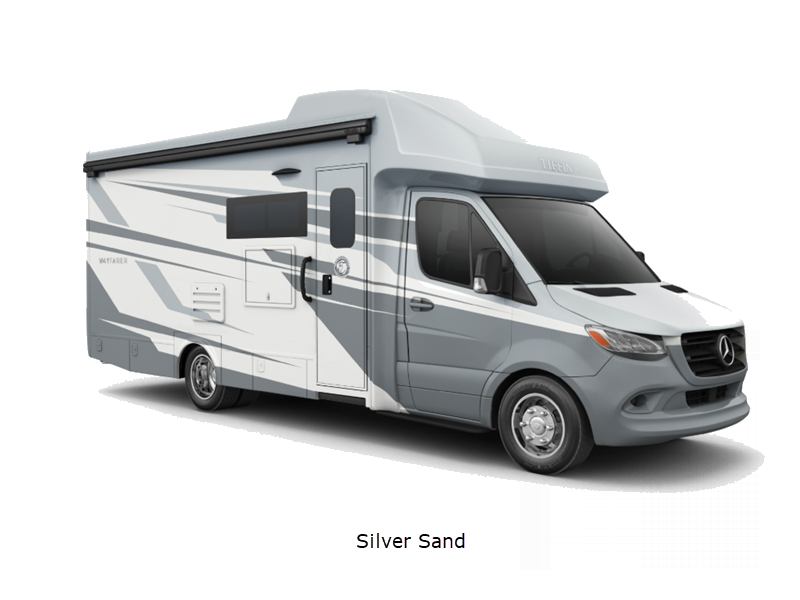

- Silver Sand Full Body Paint

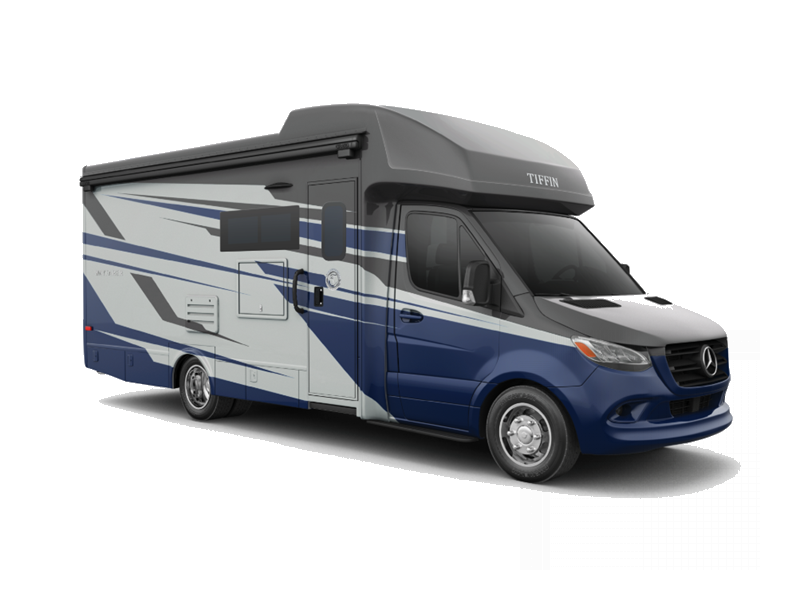

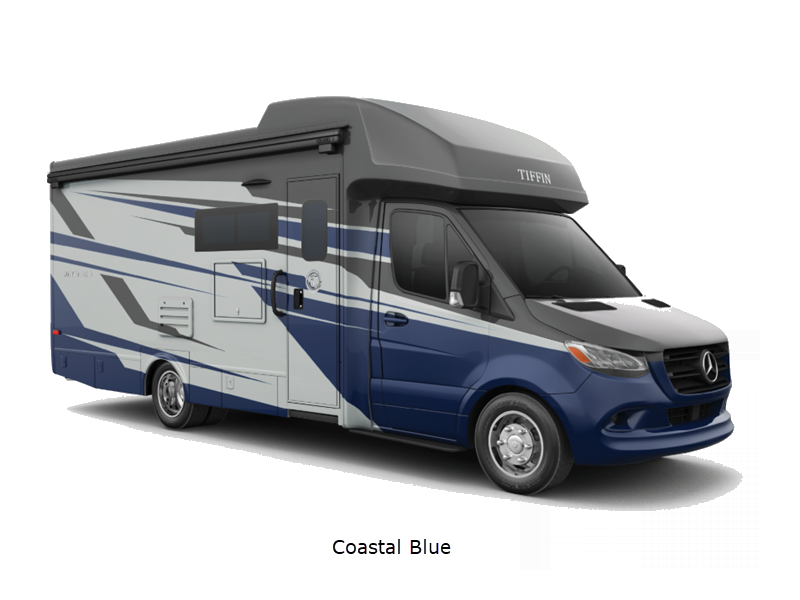

- Coastal Blue Full Body Paint
Interior
- Handcrafted Overhead Cabinetry
- Mild Steel Step Well with Composite Steps
- Solid Surface Galley Countertop
- Handcrafted Slide-out Fascia
- Soft Touch Vinyl Ceiling
- Dimmable LED Lighting
- Accent Lighting in Lounge, Galley, and Bedroom
- Carbon Monoxide Detector
- LPG Leak Detector
- Smoke Detector
- Fire Extinguisher
- Solar and Privacy Shades
- Soft-closing Drawers
- Powered Roof Vents
- Interior Grab Handle at Entry Door
- Stereo System with Separate Speaker Zones
- (2) Captain’s Chair Lounge Cushions
Interior Decor Packages
- Sedona (Optional)
- Grandview (Optional)
Upholstery Fabrics
- Franklin Snowhill Dove (DEP)
- Franklin Snowhill Sand (DEP)
Cabinet Color
- Glistening Trail Cabinetry (OPT)
- Phantom Ecru Cabinetry (OPT)
Floor Tiles
- Stony Ground Linoleum
Television
- Living Area Mounted TV (Std.25XLW) (OPT 25XRW, 25XP)
- Overhead Bunk TV (DEP)
Interior Add On Options
- Central Vacuum System
Driver's Compartment
- Black Leather Adjustable Driver and Passenger Seats
- Swivel Bases for Driver and Passenger Seats
- Heated Driver and Passenger Seats
- Leather Wrapped Steering Wheel with Integrated Controls
- Keyless Start
- Windshield with Filter Band
- Rain Sensor for Windshield Wipers
- Automatic LED Headlights
- Emergency Call System
- Smartphone Integration For Apple Carplay® and Android™ Auto

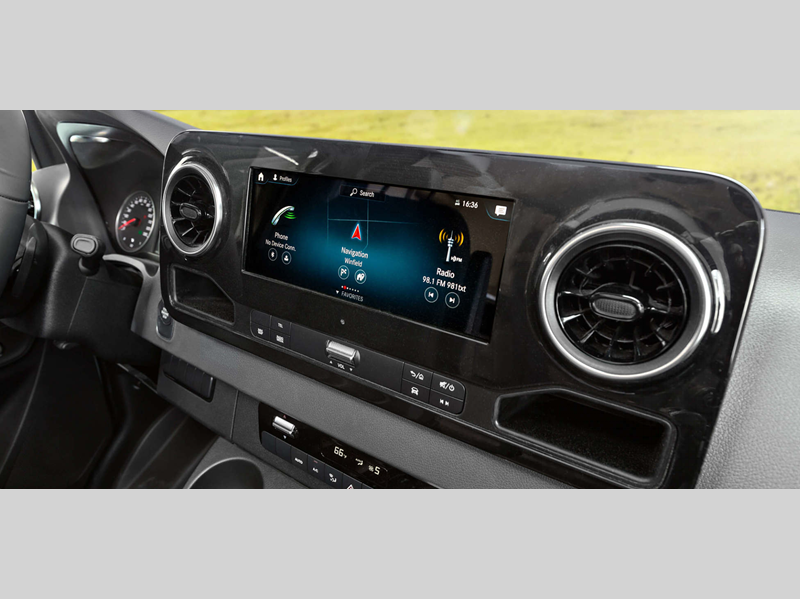

- Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
- Ceiling Mounted Speakers
- Tray for Smartphones with Charging Ports
- Intelligent Navigation
- Auxiliary Start Switch
- Powered Windows
- Door-mounted Driver and Passenger Assist Handles
- Powered Door Locks
- Vinyl Floor Covering
- Driver, Passenger, and Windshield Thermal Barrier Shades
- Instrument Cluster with Color Display
Driver's Compartment Add On Options
- Side-View Cameras
- Cab Skylight
Overhead Features
- Front Overhead Bunk
- Overhead Entertainment Center (Optional)

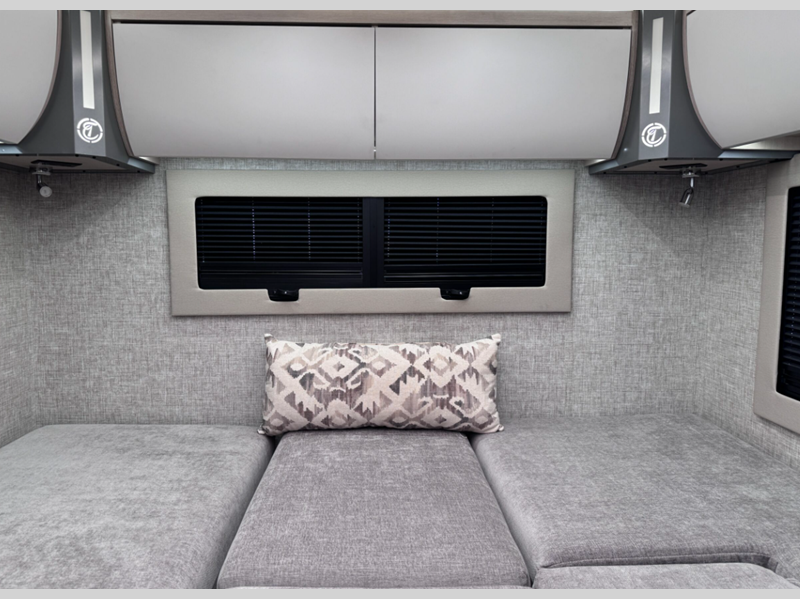

Dinette and Living Area
- 52" Tri-fold Sofa Bed (25 XLW Only)
- 50" Theater Seating (Optional) (25 XLW Only)
- 72" Booth Dinette-Sleeper (25 XRW, 25 XPW Only)

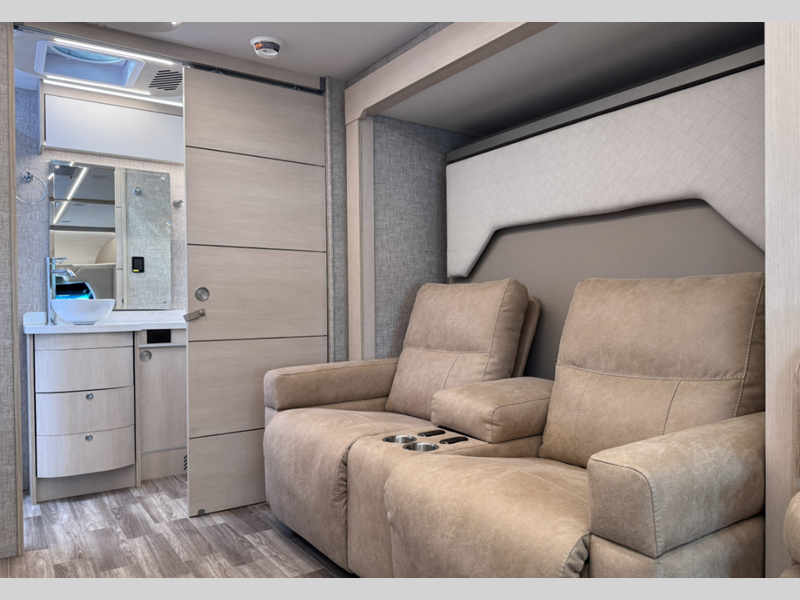

- 68" Theater Seating (Optional) (25 XRW, 25 XPW Only)
- 70" Tri-fold Sofa Bed (Optional) (25 XRW, 25 XPW Only)
- Rear King Bed (25 XPW Only)
- Driver Side Queen-sized Murphy Bed (60" x 74") with Sofa (25 XRW Only)

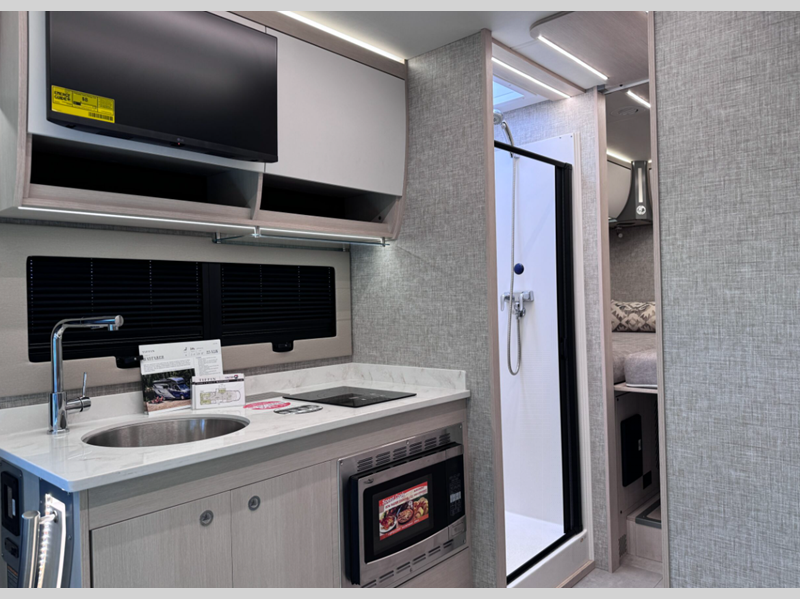

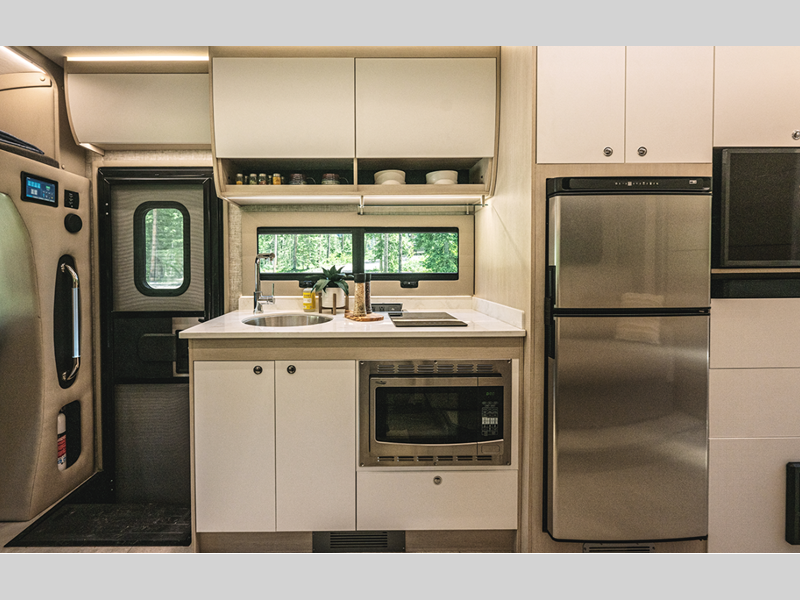

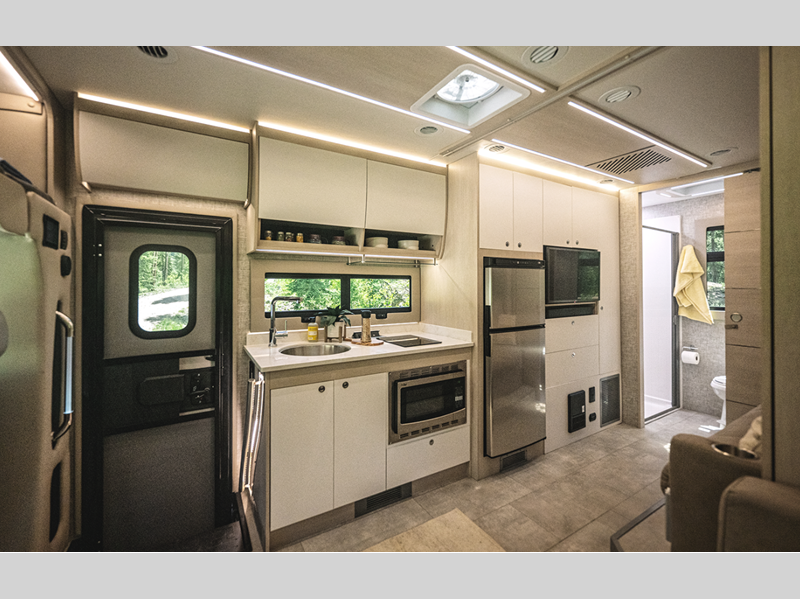

Kitchen
- Stainless Steel Convection Microwave
- Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
- Galley Overhead Cabinets
- Sliding Countertop Extension within Drawer
- Task Lighting
- Solid Surface Galley Countertop
Refrigerator Options
- 12-Volt, 8-Cubic Foot Refrigerator (DEP; 25 XRW, 25 XPW Only)
- Gas-Electric, 7-Cubic Foot Refrigerator (DEP; 25 XRW, 25 XPW Only)
- 12-Volt, 5.3-Cubic Foot Refrigerator (DEP; 25 XLW Only)
- Gas-Electric, 5-Cubic Foot Refrigerator (DEP; 25 XLW Only)
Cooking Appliances
- One-Burner Induction Cooktop (DEP)
- Liquid Propane Cooktop with Built-in Cover (DEP)
Bedroom
- LED Reading Lights
- Overhead Cabinets
- Wardrobe
Mattress

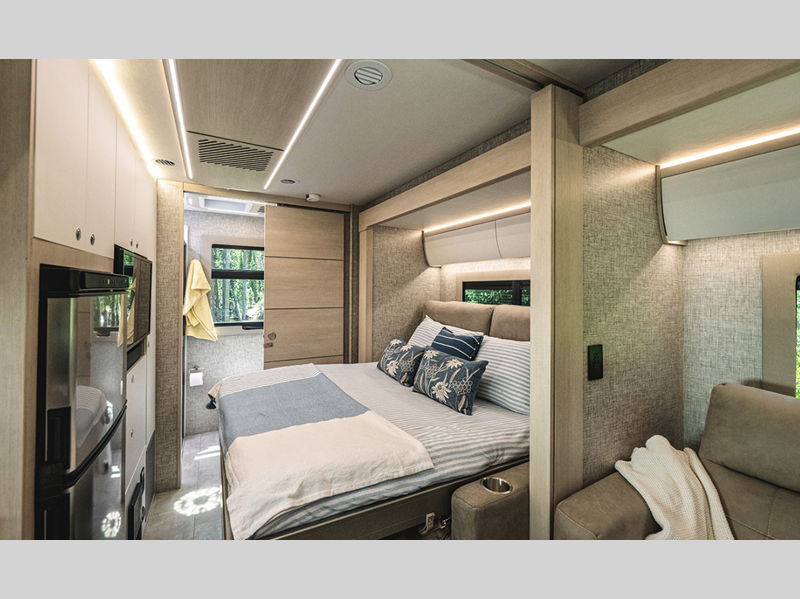

- Queen-sized Murphy Bed (60" x 74") (25 XRW Only)
- King-sized Residential Bed (76" x 80") (25 XPW Only)
- (2) Twin Mattresses (32" x 76"), Combines into King Bed (86" x 76") (25 XLW Only)
Bedroom Add On Options
- Sleeping Area Privacy Curtain (25 XRW, 25 XPW Only)
- Mounted Bedroom TV
Bedroom Storage
- Pop-up Closet Storage (25 XLW Only)
- Wardrobe Cabinet (25 XPW Only)
- Closet Pull-out (25 XLW Only)

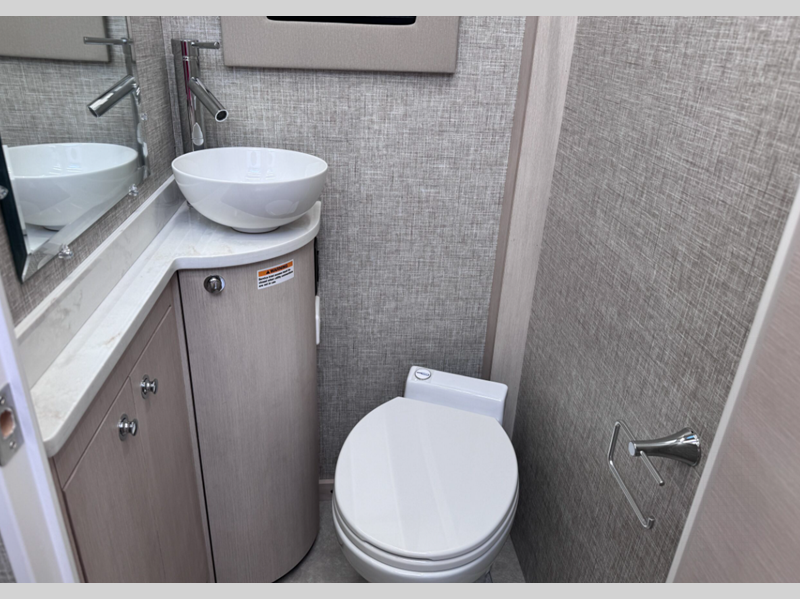

Bathroom

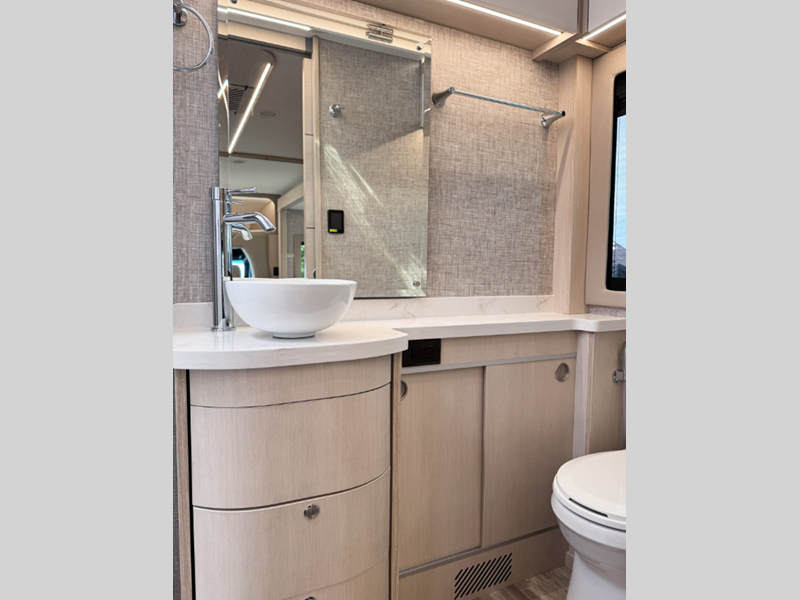

- Porcelain Vessel Sink with Chrome Faucet
- Handheld Shower Head
- Shower Skylight
- Towel and Toilet Paper Holders
- Roof Vent Fan
- Oversized Mirror
- Base Cabinet
Shower
- One-Piece Molded Fiberglass Shower (30" x 36") (25 XRW, 25 XPW Only)
- One-Piece Molded Fiberglass Shower (24" x 32") (25 XLW Only)
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
