Floorplan - 2016 Forest River RV Berkshire XL 40RB
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $139,891
- List Price: $150,091
- Discount: $10,200
-
Sleeps 4
-
4 Slides
-
Bath and a HalfRear Bath
-
41ft Long

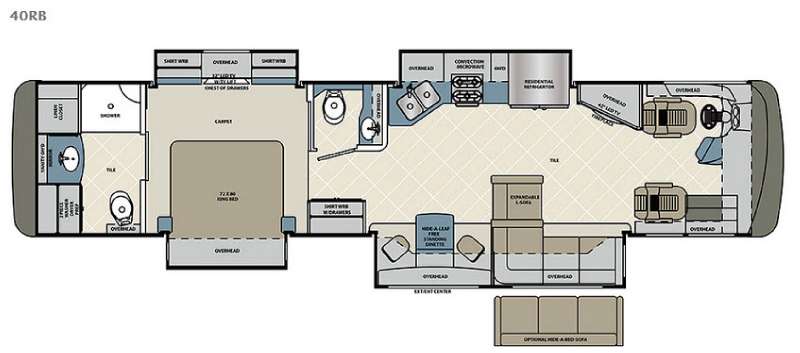

40RB Floorplan
Specifications
Sleeps | 4 | Slides | 4 |
Length | 41 ft | Ext Width | 8 ft 4 in |
Ext Height | 12 ft 5 in | Int Height | 7 ft |
Hitch Weight | 10000 lbs | GVWR | 32000 lbs |
Fresh Water Capacity | 86 gals | Grey Water Capacity | 66 gals |
Black Water Capacity | 42 gals | Tire Size | 275/80R22.5 |
Furnace BTU | 40000 btu | Fuel Type | Diesel |
Engine | 6.7L Cummins ISB-XT | Chassis | Freightliner XCR |
VIN | 4UZAB2DT1FCGP3979 |
Description
Enter in front of the passenger seat and find a living area which is wide open and very spacious. Here there are dual opposing slides giving you plenty of space to move about. Behind the passenger seat enjoy an expandable L-shaped sofa or choose an optional hide-a-bed sofa, with storage above, and a hide-a-leaf free standing dinette with two chairs. From either seating you can enjoy the 42" LED TV and fireplace in the corner behind the driver's seat. This also offers overhead cabinets as well.
The kitchen slide out provides a residential refrigerator, a three burner range with overhead convection microwave, and a double sink for cleaning up. You will easily be able to prepare all of your favorite meals!
Continuing back toward the rear of this coach you will find a 1/2 bath featuring a toilet and large vanity with sink plus overhead storage. Opposite the half bath along the curb side is a shirt wardrobe with drawers.
The master bedroom and bath is located in the rear. Here you will find a slide out king size bed including nightstands and overhead storage. Opposite the bed is another slide which features a chest of drawers in the center with an overhead cabinet and 32" LED TV, and shirt wardrobes. The master bath features a sliding door for privacy, a shower, toilet, linen closet, and sink with overhead mirror and cabinet. There is also a large linen cabinet and a space that has been prepped for a two piece washer and dryer.
On the outside of this Berkshire XL model 40RB you will enjoy the entertainment center, plus so much more!
Features
- Freightliner XCR Raised Rail Chassis
- Cummins ISB 6.7 turbo diesel, 360 HP @ 2400RPM, 2600 GOV RPM 800 LB/FT @1800 RPM
- Allison 3000MH 6-speed transmission
- 120V Engine Heater 750W (1000W with 380ISL Engine Option)
- 22.5″ Polished Aluminum Wheels
- Michelin XZE2 275/80 R22.5 14 ply radial tires
- Trailer hitch capacity, 10,000 lb
- Allison electronic push button shifter
- 100 gallon, locking dual fill fuel tank
- 13 Gallon DEF Tank
- LCD engine message center
- Day time running lights
- 7-Pin tow power connector
- 18.7 CFM air compressor
- Farr Eco-air cleaner
- Air filter restriction indicator
- Fuel/water separator
- Brake line air dryer with heater
- Automatic, heated moisture ejectors
- Power steering
- Washer/wiper with intermittent function
- 160 amp alternator
- Two (2) 1900 CCA at 0 degree Fahrenheit, maintenance free batteries
- Full air ABS brakes with auto slack adjuster
- Variable exhaust brake
- Telescopic/tilt steering wheel
- Neway air suspension front and rear axles
- Sachs custom tuned shock absorbers
- 55 degree wheel cut
- Auto air suspension deflation system
- Cross flow, rear mounted radiator
- Transmission oil cooler
- 5 year / 100,000 mile coolant (some maintenance required)
- 4-Spoke VIP steering wheel
- Electronic cruise control with high idle
- Multiple auxiliary charging ports at dash
- Power stepwell cover
- Entry assist handle
Construction & Exterior
- Fiberglass front and rear caps
- Full body painted exterior (Sikkens 4X clear coat)
- Four (4) point fully auto hydraulic leveling system with auto air dump
- Tru-Brace chassis support system
- Rust resistant aluminized steel chassis skirts
- Diamond shield front mask protective film
- 1 Piece Fiberglass Roof
- Top-mount remote exterior/heated/mirrors/with cameras
- Frameless dual pane, dark tint windows
- Automotive foam and Ziebart seal undercoating
- Carefree power door awning
- Carefree Travl'r electric patio awning with LED lighting
- Carefree slideout topper w/cover (full/wall slide) (40RB only)
- Carefree slideout toppers
- Full height strut assisted compartment doors with full pass through storage
- "One Key" system, ext-compartment, entry door & fuel fill doors
- Quiet integrated A/C intake/ducting roof system
- Crowned and layered vacuum bonded fiberglass roof
- Vacuum bonded 3″ floor w/Tubular aluminum frame
- Gel coated vacuum bonded aluminum tube with fiberglass and block foam insulation sidewalls
- 1/2″ structure wood flooring
- Block foam polystyrene insulation
- 30″ Entryway
- In wall channeled drains for A/C's
- Steel basement construction
- Tubular steel firewall with polystyrene insulation
- Shower Skylight
- Lighted exterior assist handle
- Two piece rear ladder
- 84″ interior ceiling height
- PTL Entrance door with deadbolt
- Auxiliary air chuck (front firewall)
- Auxiliary LP supply, quick connect (passenger side)
- Full length mud flap with chrome Forest River name
- Slide tray in basement compartment
Electrical
- 50A service w/auto transfer switch & 30' power cord
- 8kW Onan diesel generator with manual slide tray
- Electronic battery disconnect switch
- Remote generator start switch (on dash)
- LED Ceiling light package
- Driver & Passenger LED ceiling map lights
- Cosmetic bathroom lighting
- Decorative wall & dinette lighting where applicable
- Auxiliary engine start switch at dash
- Individual reading lights bed overhead
- 2000w pure sine inverter/converter
- Euro style 12v Switches
- Auto generator start module
- Four (4) Six volt deep cycle house batteries
- Two (2) Master electric convenience shut off switches
- Auto/power entrance step
- Patio light
- Easy access fuse/load centers
- Dimmer control living room and bedroom ceiling lights
Plumbing
- Variable speed constant pressure water pump
- Bath - Solid surface under mount sink
- Kitchen - Stainless steel under mount sink
- Whole house water filter
- Black water tank flush system
- Kitchen- High rise single lever faucet with pull-out sprayer
- Double lever lavatory faucets
- One piece fiberglass shower with glass door
- Porcelain china stool
- Techma-macerator stool (rear bath) (40RB only)
- Clean easy exterior shower hose
- Individually zoned hot/cold manifold water supply system
Driver/Passenger Area
- One piece windshield
- Power front night and day shade
- Manual passenger & driver windows day/night shade
- Black pearl burl dash panels
- Fog lights
- Dash radio w/ integrated color back-up and side camera pkg with navigation
- Wrap around cockpit with nine (9) gauge instrument cluster
- Driver 360 degree swivel and recline seat w/ 6-Way power adjustment
- Passenger 360 degree swivel & recline seat with power footrest
- Soft touch Flexsteel driver/passenger seat
- Passenger side console
- Lighted step well
- Two (2) Defroster fans with high and low settings
- Driver/passenger cup holders
- Automotive dash AC/Heater with deluxe controls
- Tile with solid surface edged step well
- Premium Freightliner gauge package with chrome bezels
Entertainment
- 40″ LED TV, living room (40A only)
- 42″ LED TV, living room (n/a 40BH)
- 42″ LED TV, living Room, with slide (40BH only)
- 32″ LED TV, bedroom
- 32″ LED TV, front dash overhead (n/a 40RB, 40A)
- Hi-Fi sound bar with Bluetooth
- Roof mount Winegard Trav'ler satellite prep
- Two flip down LCD monitors with DVD and AV inputs (1 per bunk) (40BH only)
- Cable TV prep
- Hi-Definition digital TV antenna with signal strength indicator
- High definition cat 6 matrix signal distribution
- Sirius/XM satellite radio capable
- Blu-ray DVD Player
- Exterior entertainment center in sidewall: 40″ TV & radio with auxiliary jack
- Polished porcelain tile
- Native hardwood cabinetry
- Hidden hinges and pull style cabinet hardware
- Carpeted living room and dining slideouts
- Window valances
-
- Bedroom carpet with padding
- "Soft Touch" love seat (40BH only)
- "Soft Touch" Expandable sofa (40BH, 40RB)
- Polished solid surface kitchen/dinette countertops with flush sink and stove covers
- Polished solid surface backsplash with tile inserts in the kitchen and bathroom
- Soft close ball bearing drawer guides in kitchen
- Full extension ball bearing metal drawer guides
- Galley storage compartment for range and sink covers
- Kitchen pantry (n/a 40RB)
- Pull out kitchen countertop (40RB only)
- Bi-fold doors, bunk beds (40BH only)
- "Soft Touch" Dream booth dinette with storage (40BH only)
- "Soft Touch" padded ceiling
- Roller style day/night shades
- Large bedside wardrobe (n/a 40RB)
- Dresser drawers and wardrobe type cabinets
- 72″x 80″ Serta king bed w/bedspread and decorative pillows (standard 40RB, 40A)
- 60″x 80″ Serta queen bed w/bedspread and decorative pillows (standard 40BH)
- Hardwood headboard with padded insert
- Contoured overhead cabinets in slide rooms
- Bedroom night stands
- Mirrored medicine cabinets
- "Villa" dinette/sofa ensemble (40A only)
- Towel bar, toilet paper holder and towel ring
Appliance
- 15,000 BTU w/heat pump (front), 15,000 BTU (rear), low profile A/C's
- Holding tank heat pads
- Continuous flow gas water heater
- (2) Dual zoned 20,000 BTU furnaces
- 30″ OTR convection microwave oven
- 23 cu. ft. Residential French door refrigerator with ice maker
- Sealed 3-burner stainless recessed cook top
- Power fan in bathroom
- Fan in galley with built in thermostat control
- Washer/dryer prep
- Electric fireplace
Safety
- 110 GFI protected circuits
- Carbon monoxide detector
- LP gas detector w/auto tank shutoff
- Smoke alarm
- Egress window
- Surface mounted fire extinguisher
- Cummins ISL9 turbo diesel , 380 HP @ 2000RPM,
- 2200 GOV RPM 1150 LB/FT @1400 RPM
Interior
- Hide-A-Bed sofa (40BH, 40RB)
- Free-standing dinette with hutch and four (4) chairs (40A, 40BH)
Appliance/Electronic
- Trav'ler (Winegard) satellite antenna Direct TV (US) - Shaw (Canada)
- Stackable washer/dryer
