+19-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
36ft Long
-
8,515 lbs

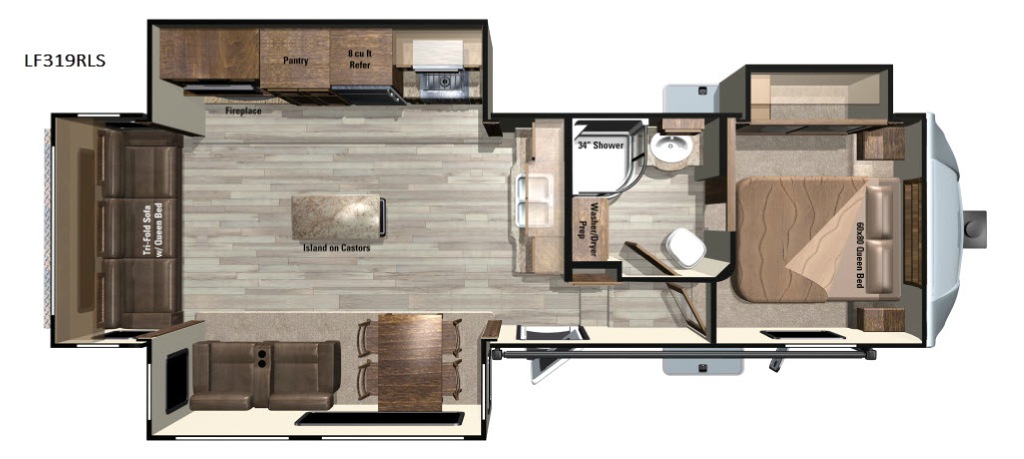

LF319RLS Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 35 ft 8 in | Ext Width | 8 ft 4 in |
| Ext Height | 12 ft 5 in | Hitch Weight | 1235 lbs |
| GVWR | 10995 lbs | Dry Weight | 8515 lbs |
| Cargo Capacity | 2480 lbs | Fresh Water Capacity | 50 gals |
| Grey Water Capacity | 57 gals | Black Water Capacity | 31 gals |
| Tire Size | 15" | VIN | 58TFX352XH3028427 |
Description
This Open Range Light fifth wheel model LF319RLS features triple slides, a rear living layout with a fireplace, a convenient kitchen island on castors, and so much more!
Step inside and move left into the main combined kitchen and living space. There are dual opposing slides which create a wide open spacious feel. To the left of the door there is a free standing table and chairs, plus theatre seating for two including cup holders and overhead storage in the first slide. Along the rear wall there is a tri-fold sofa with queen bed including end tables and overhead storage.
Opposite you will find a second slide out with a three burner range including an overhead microwave oven, a refrigerator, pantry, and entertainment center with fireplace below. The kitchen island on castors can be moved around to where you need it most whether for prep space while cooking, or to place snacks on while you hang out and enjoy family time inside. There is also a double kitchen sink along the interior wall that features additional counter space and overhead cabinets, plus storage below.
Step up the steps to the right of the entry door and find a complete bath and front bedroom suite. The bath provides a radius shower, sink, toilet, and linen cabinet that has also been prepped for a washer and dryer if you choose to add. The bath also features a convenient pocket door that leads directly into the bedroom where you will enjoy a queen size bed including nightstands with open storage below and a cargo net on either side, plus a slide out wardrobe with mirrored doors, and drawers inside, plus so much more.
Features
Standard Features (2017)
- 100" Wide Body Frame
- ACCU-SLIDE Slide System (42" Deep w/4-Corner Compression)
- Correct Track™ Suspension Alignment System
- Frameless Windows
- Front & Rear Stabilizer Jacks
- Ladder
- Late Model 1/2 Ton Towable
- LCI® Equa-Flex Suspension
- LP Quick Connect
- MaxxAir FANMATE (Kitchen Vent)
- Nitro Filled Tires w/Aluminum Wheels
- Power Tongue Jack
- PVC Roof Material
- Spare Tire
- BBQ Grill
- Dometic© Brisk II 13.5k BTU Air Conditioner w/"Quick Cool" Feature (2nd A/C)
- Dometic© Brisk II 15k BTU Air Conditioner w/"Quick Cool" Feature
- Dual Pane Windows
- Extreme Arctic Package
- Fiberglass Front Cap w/LED Lights
- Furrion Observation Camera
- Lock Arm Stabilizer Bars
- MaxxAir MAXXFAN PLUS in Bathroom
- MaxxAir MAXXFAN PLUS in Bedroom
- MaxxAir MAXXFAN PLUS in Bunkroom (308)
- MaxxAir MAXXFAN PLUS in Kitchen
- Power Front & Rear Stabilizer Jacks
- Rear Storage Tray
- Fireplace (Select Models)
- U-Lounge
- Coffee Table Ottoman w/Storage
- Dyson Vacuum Cleaner
- Table/Chairs & Theater Seats IPO U-Lounge (308)
- Wall-Mount Fireplace (216,308)
- 50 Amp Service
- Water Pump w/Attached Filter/Strainer
Kitchen
- 100# Full Extension Drawer Guides
- Norcold© 8 Cu. Ft. Refrigerator
Kitchen Option
- 2 Extra Folding Dinette Chairs
- French Door to Bedroom
- French Door to Bunkroom (308)
- Party Room Package (308)
- 24" Bedroom TV
- 24" Bunk Room TV (308)
Four Season Package (Mandatory)
- ATWOOD® Next Gen High Performance Furnace
- Double Insulated Baggage Doors
- Heated & Enclosed Dump Valves
- Heated & Enclosed Underbelly w/4" Duct -ZERO DEGREE TESTED
- R-38 Reflective Foil Insulation in Ceiling
- R-38 Reflective Foil Insulation in Floor
- R-38 Reflective Foil Insulation in Slide Floor(s)
- R-9 Insulation in Sidewall
- 6’4” X 26” Full-View Vented Entrance Door w/Friction Hinge™
- Dometic© Brisk II 13.5k BTU Air Conditioner w/"Quick Cool" Feature (Main A/C)
- Global Link KEY-ALIKE
- Longitude Power Awning w/LED Light & FLXguard
- Prepped for Observation Camera
- Tread Lite® Aluminum Entry Steps
- Wired and Framed for Additional A/C(s) (N/A 216,221)
- Furrion 3200 Stereo/CD/DVD Player w/BlueTooth
- Furrion 39" LED TV
- Furrion Soundbar in Living Area
- KING Jack™ Digital TV Antenna with Built-in Signal Meter
- LED Lighting in Ceiling
- Tri-Fold Sofa
- Stainless Steel Appliances
- Stainless Steel Sink w/High-Rise Faucet
- ATWOOD® 18 GPH Quick Recovery Gas/Electric Water Heater
- Enclosed Ext. Utility Center w/Black Tank Flush
- Radius Corner Shower w/Glass Doors
- USB/12V Charging Port
Fifth Wheels
- "King Combo" Pin Box
- 100" Wide Body Frame
- ACCU-SLIDE Slide System (42" Deep w/4-Corner Compression)
- Correct Track™ Suspension Alignment System
- Fiberglass Front Cap w/LED Lights
- Frameless Windows
- Ladder
- Late Model 1/2 Ton Towable
- LCI® Equa-Flex Suspension
- LP Quick Connect
- MaxxAir FANMATE (Kitchen Vent)
- Nitro Filled Tires w/Aluminum Wheels
- PVC Roof Material
- Spare Tire
- BBQ Grill
- Dometic© Brisk II 13.5k BTU Air Conditioner w/"Quick Cool" Feature (2nd A/C)
- Dometic© Brisk II 15k BTU Air Conditioner w/"Quick Cool" Feature
- Dual Pane Windows
- Extreme Arctic Package
- Furrion Observation Camera
- Lock Arm Stabilizer Bars
- MaxxAir MAXXFAN PLUS in Bathroom
- MaxxAir MAXXFAN PLUS in Bedroom
- MaxxAir MAXXFAN PLUS in Bunkroom (295)
- Power Rear Stabilizer Jacks
- Rear Storage Tray
- Fireplace (Select Models)
- U-Lounge (295)
- Washer/Dryer Prep (Select Models)
- Coffee Table Ottoman w/Storage
- Dyson Vacuum Cleaner
- Theater Seats IPO Sofa (Select Models)
- Theater Seats w/ End Tables IPO 76” Sofa
Kitchen
- 100# Full Extension Drawer Guides
- 2 Extra Folding Dinette Chairs
- 50 Amp Service
- Water Pump w/Attached Filter/Strainer
Electrical & Plumbing Option
- LP Generator Prep
- French Door to Bedroom
- French Door to Bunkroom (295)
- King Bed IPO Queen Bed (N/A 295)
- 24" Bedroom TV
- 24" Bunk Room TV (295)
Four Season Package (Mandatory)
- ATWOOD® Next Gen High Performance Furnace
- Double Insulated Baggage Doors
- Heated & Enclosed Dump Valves
- Heated & Enclosed Underbelly w/4" Duct -ZERO DEGREE TESTED
- R-38 Reflective Foil Insulation in Ceiling
- R-38 Reflective Foil Insulation in Floor
- R-38 Reflective Foil Insulation in Slide Floor(s)
- R-9 Insulation in Sidewall
- 6’4” X 26” Full-View Vented Entrance Door w/Friction Hinge™
- Dometic© Brisk II 13.5k BTU Air Conditioner w/"Quick Cool" Feature (Main A/C)
- Global Link KEY-ALIKE
- Longitude Power Awning w/LED Light & FLXguard
- Prepped for Observation Camera
- Tread Lite® Aluminum Entry Steps
- Wired and Framed for Additional A/C(s) (N/A 216,221)
- Furrion 3200 Stereo/CD/DVD Player w/BlueTooth
- Furrion 39" LED TV
- Furrion Soundbar in Living Area
- KING Jack™ Digital TV Antenna with Built-in Signal Meter
- LED Lighting in Ceiling
- Tri-Fold Sofa
- Stainless Steel Appliances
- Stainless Steel Sink w/High-Rise Faucet
- ATWOOD® 18 GPH Quick Recovery Gas/Electric Water Heater
- Enclosed Ext. Utility Center w/Black Tank Flush
- Radius Corner Shower w/Glass Doors
- USB/12V Charging Port
See us for a complete list of features and available options!
