- Floorplan - 2017 Thor Motor Coach ACE 30.1
-
Sleeps 6
-
2 Slides
-
Bunk Over CabOutdoor Entertainment
-
31ft Long

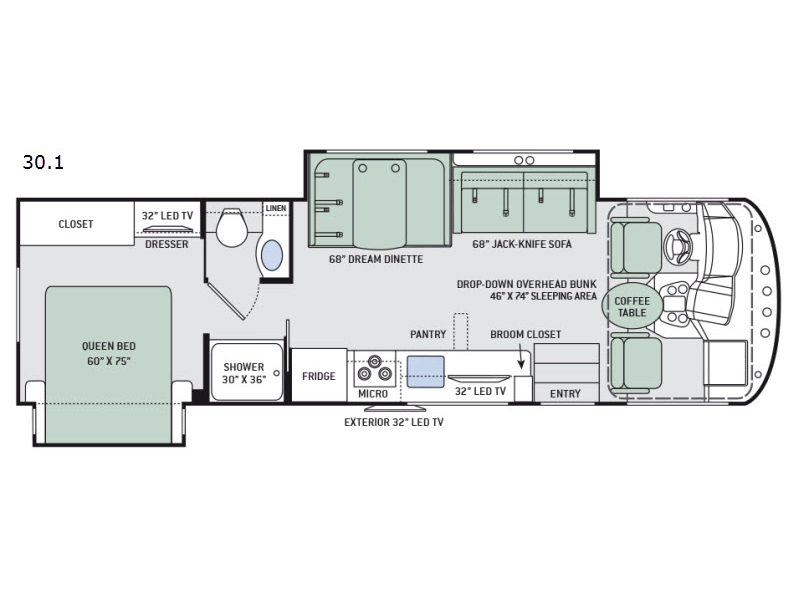

30.1 Floorplan
Specifications
Sleeps | 6 | Slides | 2 |
Length | 31 ft | Ext Width | 8 ft 3 in |
Ext Height | 12 ft 2 in | Int Height | 7 ft |
Hitch Weight | 8000 lbs | GVWR | 18000 lbs |
Fresh Water Capacity | 50 gals | Grey Water Capacity | 44 gals |
Black Water Capacity | 24.5 gals | Tire Size | 19.5" |
Furnace BTU | 35000 btu | Fuel Type | Gasoline |
Engine | 6.8L Triton V10 | Chassis | Ford |
Horsepower | 320 hp | Fuel Capacity | 80 gals |
Wheelbase | 190 in | Number Of Bunks | 1 |
Available Beds | Queen | Torque | 460 ft-lb |
Refrigerator Type | Double Door | Cooktop Burners | 3 |
Shower Size | 30" x 36" | Number of Awnings | 1 |
LP Tank Capacity | 88 | Water Heater Capacity | 6 gal |
Water Heater Type | DSI Gas/Electric | AC BTU | 15000 btu |
Basement Storage | 68 cu. ft. | TV Info | Kitchen 32" LED TV, Bedroom 32" LED TV, Exterior 32" LED TV |
Awning Info | 14' Power | Gross Combined Weight | 23000 lbs |
Shower Type | Standard | VIN | 1F65F5DYXK0A08050 |
Description
The contact for this RV is Kevin Fossum and Keith Cooks and can be reached directly on our cell phone at 714-869-7090! LEVELING JACKS! The 2013 Thor ACE 30.1 has two slides that provides plenty of space for the whole family with sleeping for 7-8 people if needed. It has all of the options you would expect including; LCD TV, electric patio awning, plenty of storage and so much more.
If you should happen to come in to our Fountain Valley location, you will need to ask for Kevin and Keith.
Out of state customers are welcome! Additional photos, brochure and floor plan available by request. For questions about this RV or unlisted inventory at any of our 4 stores ask for Kevin and Keith in Internet Sales at 714-869-7090 or email me at fvinternetsales@mikethompson.com. Mike Thompson's RV Super Stores is currently the #1 RV dealer in the country. We pay top dollar for all types of trades. Deal directly with the internet/fleet department for no-hassle prices.
Features
Standard Features (2020)
Construction & Exterior
- Ford® F-53 Chassis
- 8,000-lb. Trailer Hitch with 7-pin Round Connector
- Automatic Leveling Jacks with Touchpad Controls
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof and Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
- One-Piece Fiberglass Front Cap
- One-Piece Windshield
- HD-MAX® Exterior with Graphics Package
- Rotocast Storage Compartments
- Exterior MEGA-Storage™ Compartment (30.4)
- Premium One-Piece TPO Roof
- Power Patio Awning with Integrated LED Lighting
- Slideout Room Topper Awning(s)
- Roof Ladder
- Side-Hinged Flush Mount Radius Compartment Doors
- Motorhome Mudroom™ Compartment
- Electric Entry Step
- Entry Door with Deadbolt Lock
- Exterior Grab Bar Handle
- Frameless Windows
- Pet-Link™ Multi-Purpose Tie-Down
Automotive & Cockpit
- 10" Touchscreen Dash Radio with Bluetooth® with iGo primo™ Navigation & Sirius/XM Radio
- Heated/Remote Exterior Mirrors with Integrated Side View Cameras
- Back-Up Monitor
- Cruise Control
- Tilt Steering Wheel
- Windshield Privacy Shade
- Sun Visors
- Map Lights
- Emergency Engine Start Switch
- Conversation Mirrors
- Drink Holders
- Stow-Away Coffee Table
- Dash Workstation with 110-volt & 12-volt Outlets
- Bird's Eye™ Window
- Three-point Seat Belts for Driver and Passenger
- Reclining/Swivel Leatherette Captain's Chairs
- Power Drop Down Hide-Away Overhead Bunk with Bunk Ladder
- 19.5" Tires with Stainless Steel Wheel Liners
- Valve Stem Extenders on Rear Wheels
Interior
- 84" Interior Ceiling Height
- Residential Vinyl Flooring
- Rubber Tread Entry Steps with Lighted Step Well & Utility Storage
- Metal Entry Grab Handle
- Fire Extinguisher
- Smoke, LPG & Carbon Monoxide Detectors
- Ceiling Ducted Air Conditioning System
- Flat Panel Cabinet Doors with Nickel Finish Hardware
- Home Collection Interior Decor and Cabinet Package (Optional)
- Full Extension Ball-Bearing Metal Drawer Guides
- LED Lighting
- Hard Vinyl Ceiling
- Leatherette Sofa Bed
- Leatherette "Theater Seats" with integrated footrests (33.1)
- Dream Dinette® Booth with Cup Holders
- Window Privacy Shades
- 12-volt Attic Fan with Cover in Living Area
- Passenger Seat Belts in Select Areas
- Single Child Safety Tether in Dinette (Optional)
Kitchen
- Double Door Refrigerator
- 3-Burner Gas Cooktop/Oven with Bi-Fold Glass Cover
- Microwave Oven
- Pressed Laminate Kitchen and Dinette Countertops
- Glass Tile Backsplash
- Oversized Stainless Steel Single Bowl Sink & Single Handle Faucet w/Pull-Down Sprayer
- Pantry (N/A 30.3)
- Coat/Broom Closet with Hanging Hooks (27.2, 30.2)
- Waste & Recycling Containers
Bedroom & Bathroom
- Queen Size Bed (N/A 27.2, 32.3, 33.1)
- King Size Bed (27.2, 32.3, 33.1)
- Bedroom 12V Outlet for CPAP Machine
- Designer Headboard, Bedspread & Pillow Shams
- 12-volt Attic Fan with Cover in Bedroom (27.2, 30.2)
- 12-volt Power Bath Vent with Wall Switch in Bathroom (N/A 30.2)
- Bunk Beds w/Bunk Ladder (30.2, 32.3)
- Pull-Out Kibble Station™ with FDA Approved Pet Bowl Liner
- Foot Flush Porcelain Toilet
- Skylight in Shower
- Shower with Curved Anti-Microbial Shower Curtain (N/A 30.2, 30.4, 32.3)
- Shower with Glass Door (30.2, 30.4, 32.3)
- Laminate Countertops
Entertainment
- 49" LED TV in Living Area (33.1)
- 40" LED TV in Living Area (N/A 30.3)
- Retractable 40" LED TV in Living Area (30.3)
- 32" LED TV in Bedroom
- Exterior 32" LED TV on Swivel Bracket, Soundbar & Radio
- Blu-Ray Player in Living Area
- USB Charging Ports - Bedroom and Living Room
- Cable TV Ready
- Digital TV Antenna
- Two (2) 15.5" LED TVs & DVD Player in Bunk Bed Area (30.2, 32.3)
- Exterior Kitchen with 2.6 cu. ft. Refrigerator, Sink & 1000-watt Inverter (30.3)
Electrical & Plumbing
- 30-amp Detachable Shoreline Power Cord (27.2, 30.2)
- Onan® RV QG 4000 Gas Generator (27.2, 30.2)
- 15,000 BTU Roof Air Conditioner (27.2, 30.2)
- Battery Disconnect Switch
- Second Auxiliary House Battery
- Exterior LP Connection
- Pre-wired for Solar Charging
- 6-gallon DSI Gas/Electric Water Heater
- 50-amp Detachable Shoreline Power Cord, Dual 13,500 BTU Roof Air Conditioners, and Onan® RV QG 5500 Gas Generator (N/A 27.2)
- Water Heater Bypass System
- Black Tank Flush System
- Enclosed & Heated Holding Tanks (N/A 30.2, 30.4)
- Enclosed Holding Tanks with Heat Pads (30.2, 30.4)
- Systems Control Center
- Outside Shower
- 360 Siphon® RV Holding Tank Vent Cap
- 1" Fresh Water Tank Drain
- Winegard ConnecT WiFi Extender +4G
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
